Mil-PIA-Spec - Para Meta Aramid - MIL-T-87130
PIA-T-87130C, TAPE AND WEBBING, TEXTILE, PARA ARAMID
Shuttle Loom
We use DuPont, Kevlar Yarn & can also provide yarn traceability report. We can also supply above items in Para-Aramid yarns of Teijin, Twaron / Technora & Hyosung, Alkex.
| Our Code | Type | Class | Width/Dia (Inch) | Thick(Inch) | B/S (Min) pound | Elong % (Min) at Break | Pick(Inch) | Weave |
|---|---|---|---|---|---|---|---|---|
| NWFS-PIA-9031 | I | 1 | 1/2 ± 1/16 | N/A | 250 | N/A | 39 | Plain |
| NWFS-PIA-9032 | I | 2 | 1/2 ± 1/16 | N/A | 550 | N/A | 22 | Plain |
| NWFS-PIA-9033 | I | 3 | 1/2 ± 1/16 | N/A | 800 | N/A | 35 | 1/3 Twill |
| NWFS-PIA-9034 | I | 6 | 1/2 ± 1/16 | N/A | 3500 | N/A | 24 | Double Plain |
| NWFS-PIA-9035 | II | 1 | 9/16 ± 1/16 | N/A | 500 | N/A | 22 | Plain |
| NWFS-PIA-9036 | II | 2 | 9/16 ± 1/16 | N/A | 700 | N/A | 32 | Plain |
| NWFS-PIA-9037 | IV | 1 | 3/4 ± 1/16 | N/A | 500 | N/A | 38 | Plain |
| NWFS-PIA-9038 | IV | 4 | 3/4 ± 1/16 | N/A | 3000 | N/A | 12 | Plain |
| NWFS-PIA-9039 | IV | 5 | 3/4 ± 1/16 | N/A | 4500 | N/A | 11 | Plain |
| NWFS-PIA-9040 | VI | 1 | 1 ± 1/16 | N/A | 370 | N/A | 45 | Plain |
| NWFS-PIA-9041 | VI | 2 | 1 ± 1/16 | N/A | 525 | N/A | 50 | Plain |
| NWFS-PIA-9042 | VI | 3 | 1 ± 1/16 | N/A | 750 | N/A | 35 | Plain |
| NWFS-PIA-9043 | VI | 4 | 1 ± 1/16 | N/A | 1000 | N/A | 31 | Plain |
| NWFS-PIA-9044 | VI | 5 | 1 ± 1/16 | N/A | 1500 | N/A | 26 | Plain |
| NWFS-PIA-9045 | VI | 6 | 1 ± 1/16 | N/A | 2500 | N/A | 14 | Plain |
| NWFS-PIA-9046 | VI | 6a | 1 ± 1/16 | N/A | 2400 | N/A | 15 | Plain |
| NWFS-PIA-9047 | VI | 7 | 1 ± 1/16 | N/A | 3000 | N/A | 15 | Plain |
| NWFS-PIA-9048 | VI | 8 | 1 ± 1/16 | N/A | 4000 | N/A | 12 | Plain |
| NWFS-PIA-9049 | VI | 9 | 1 ± 1/16 | N/A | 6000 | N/A | 12 | 2/2 Herringbone Twill |
| NWFS-PIA-9050 | VI | 9a | 1 ± 1/16 | N/A | 7000 | N/A | 18 | 51/15 Center Rev. |
| NWFS-PIA-9051 | VI | 9b | 1 ± 1/16 | N/A | 6000 | N/A | 10 | Plain |
| NWFS-PIA-9052 | VI | 10 | 1 ± 1/16 | N/A | 9500 | N/A | 8 | 2/2 Herringbone Twill |
| NWFS-PIA-9053 | VI | 11 | 1 ± 1/16 | N/A | 12500 | N/A | 9 | Plain |
| NWFS-PIA-9054 | VII | 1 | 1-1/8 ± 1/16 | N/A | 1100 | N/A | 34 | Plain |
| NWFS-PIA-9055 | VII | 2 | 1-1/8 ± 1/16 | N/A | 2750 | N/A | 13 | Plain |
| NWFS-PIA-9056 | VII | 6 | 1-1/8 ± 1/16 | N/A | 13500 | N/A | 14 | 5/1 Herringbone Twill |
| NWFS-PIA-9057 | VIII | 1 | 1-1/4 ± 1/16 | N/A | 800 | N/A | 26 | Plain |
| NWFS-PIA-9058 | IX | 1 | 1-1/2 ± 1/16 | N/A | 500 | N/A | 48 | Plain |
| NWFS-PIA-9059 | IX | 2 | 1-1/2 ± 1/16 | N/A | 1100 | N/A | 36 | Plain |
| NWFS-PIA-9060 | IX | 5 | 1-1/2 ± 1/16 | N/A | 3000 | N/A | 18 | Plain |
| NWFS-PIA-9061 | X | 1 | 1-3/4 ± 1/16 | N/A | 1000 | N/A | 34 | Plain |
| NWFS-PIA-9062 | X | 2 | 1-3/4 ± 1/16 | N/A | 1200 | N/A | 23 | Plain |
| NWFS-PIA-9063 | X | 3 | 1-3/4 ± 1/16 | N/A | 2500 | N/A | 16 | Plain |
| NWFS-PIA-9064 | X | 4 | 1-3/4 ± 1/16 | N/A | 3000 | N/A | 17 | Plain |
| NWFS-PIA-9065 | X | 5 | 1-3/4 ± 1/16 | N/A | 4000 | N/A | 15 | Plain |
| NWFS-PIA-9066 | X | 6 | 1-3/4 ± 1/16 | N/A | 4500 | N/A | 17 | Plain |
| NWFS-PIA-9067 | X | 7 | 1-3/4 ± 1/16 | N/A | 6500 | N/A | 11 | Plain |
| NWFS-PIA-9068 | X | 8 | 1-3/4 ± 1/16 | N/A | 8000 | N/A | 10 | Plain |
| NWFS-PIA-9069 | X | 9 | 1-3/4 ± 1/16 | N/A | 10000 | N/A | 12 | 2/2 Herringbone Twill |

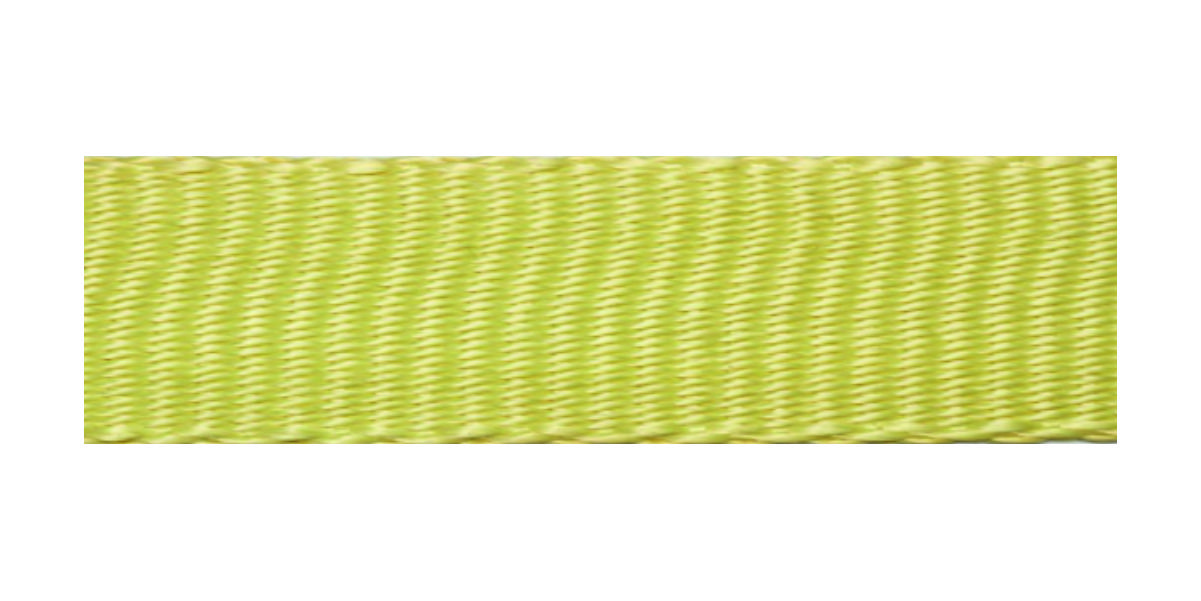

| NWFS-PIA-9070 | X | 11 | 1-3/4 ± 1/16 | N/A | 15000 | N/A | 13 | Double Plain |

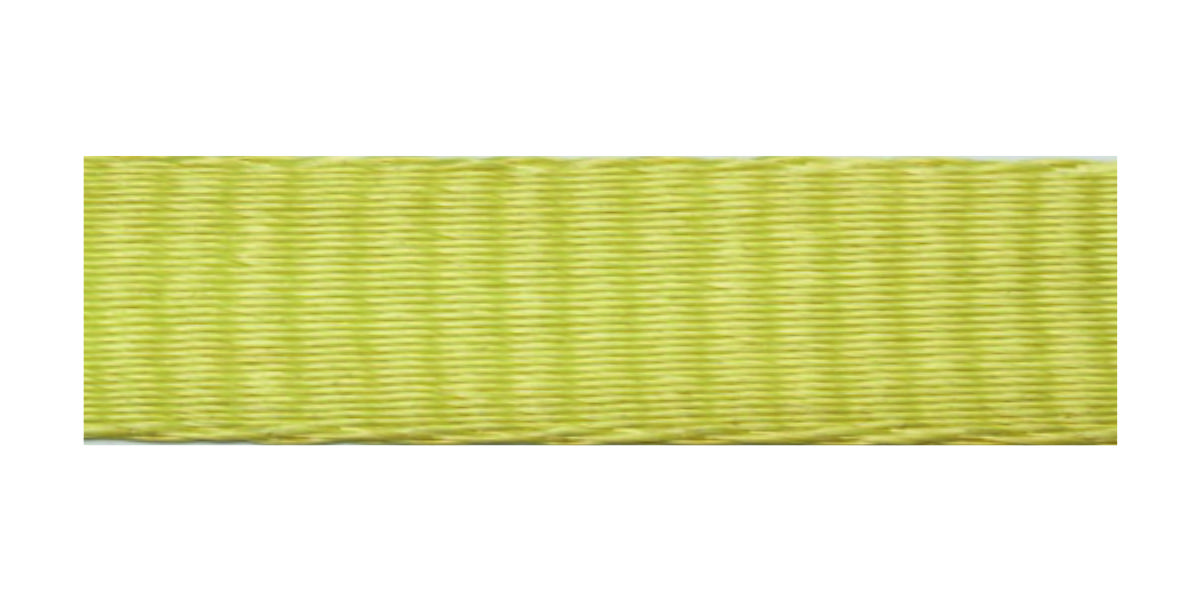

| NWFS-PIA-9071 | X | 11 | 1-3/4 ± 1/16 | N/A | 20000 | N/A | 9 | Double Plain |

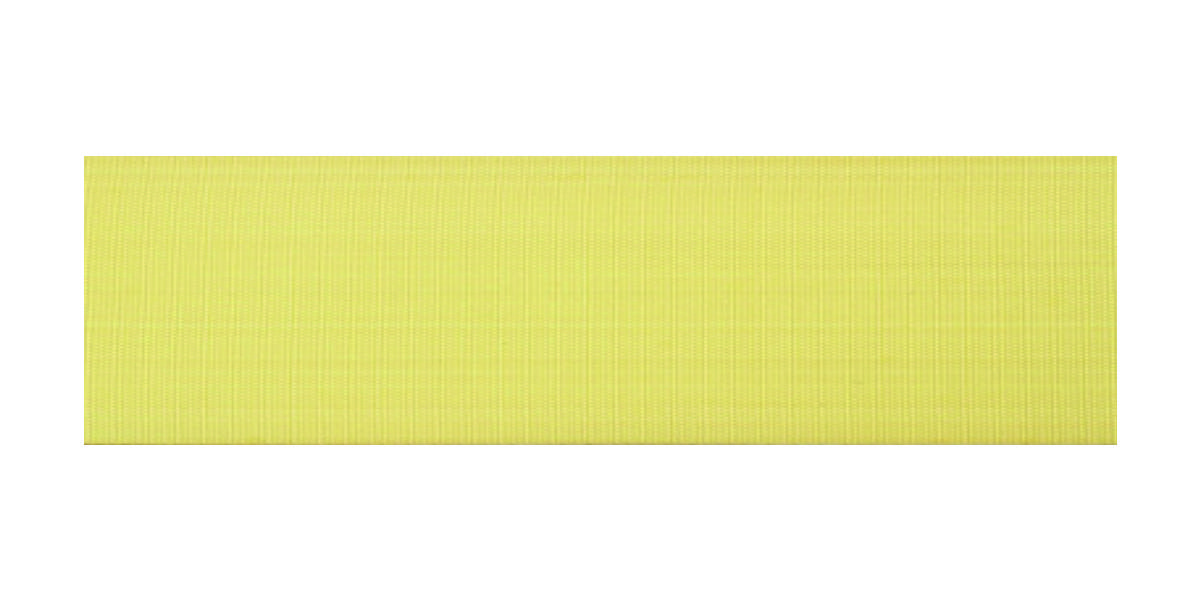

| NWFS-PIA-9072 | XI | 3 | 2 ± 1/16 | N/A | 400 | N/A | 50 | Plain |

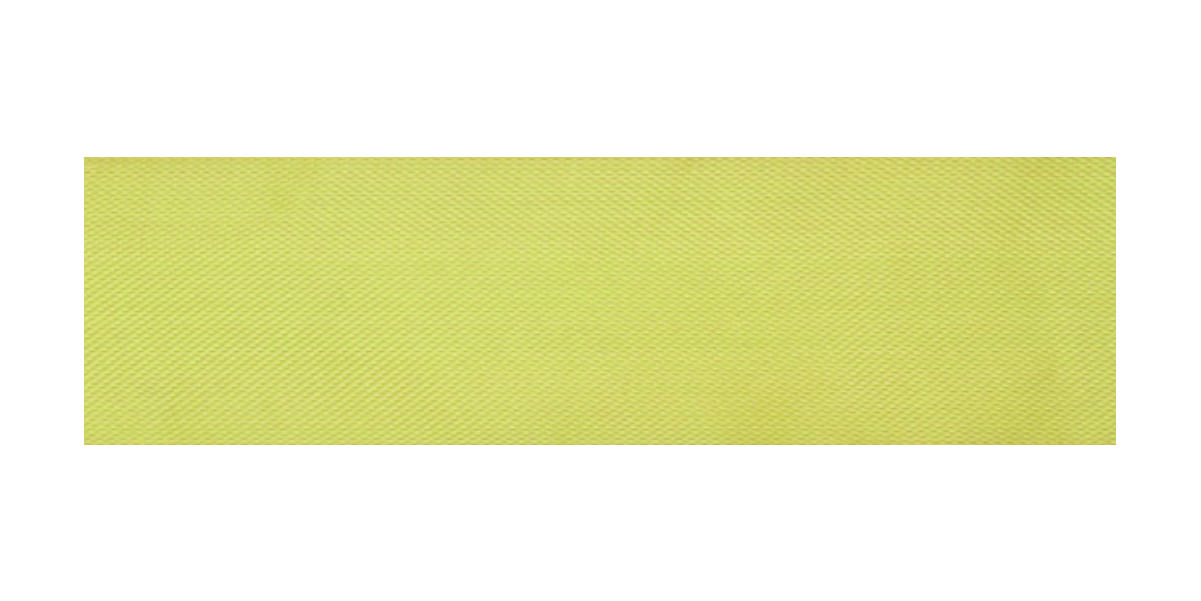

| NWFS-PIA-9073 | XI | 3 | 2 ± 1/16 | N/A | 600 | N/A | 46 | Plain |

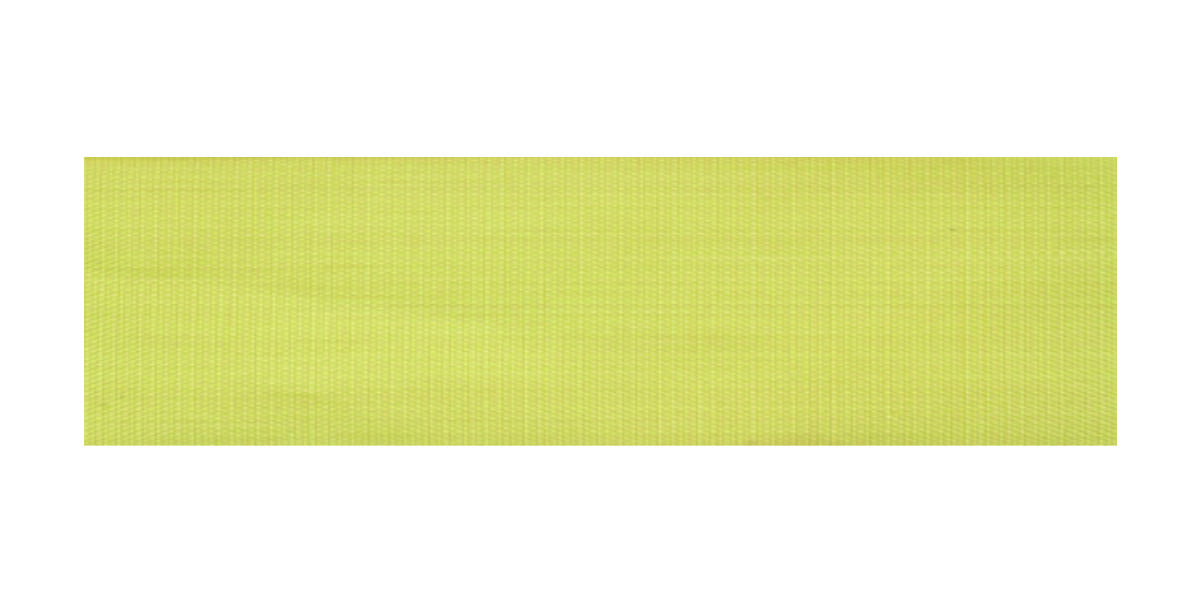

| NWFS-PIA-9074 | XI | 7 | N/A | N/A | 800 | N/A | 42 | Plain |

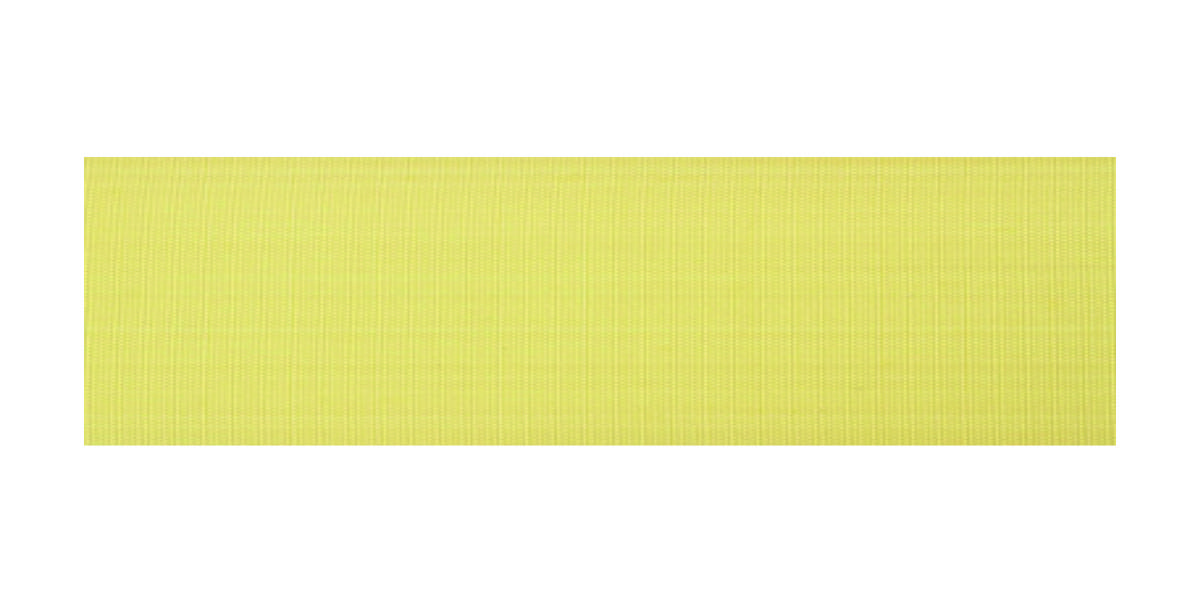

| NWFS-PIA-9075 | XI | 9a | N/A | N/A | 1000 | N/A | 46 | Plain |

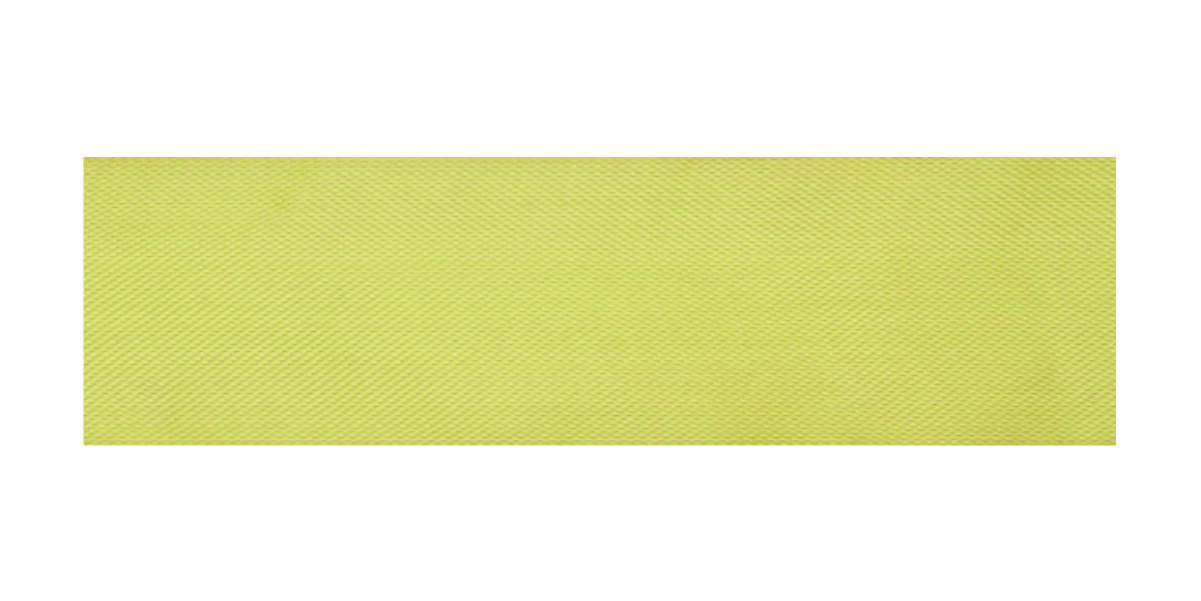

| NWFS-PIA-9076 | XI | 9b | 2 ± 1/16 | N/A | 1000 | N/A | 40 | Plain |

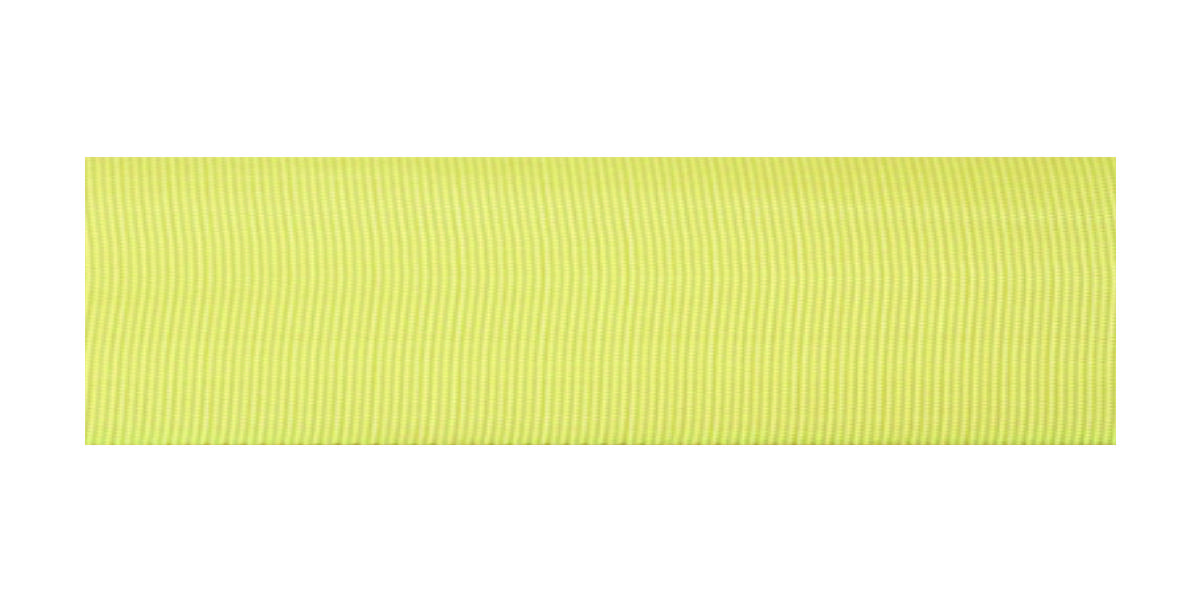

| NWFS-PIA-9077 | XI | 11 | 2 ± 1/16 | N/A | 1500 | N/A | 31 | Plain |

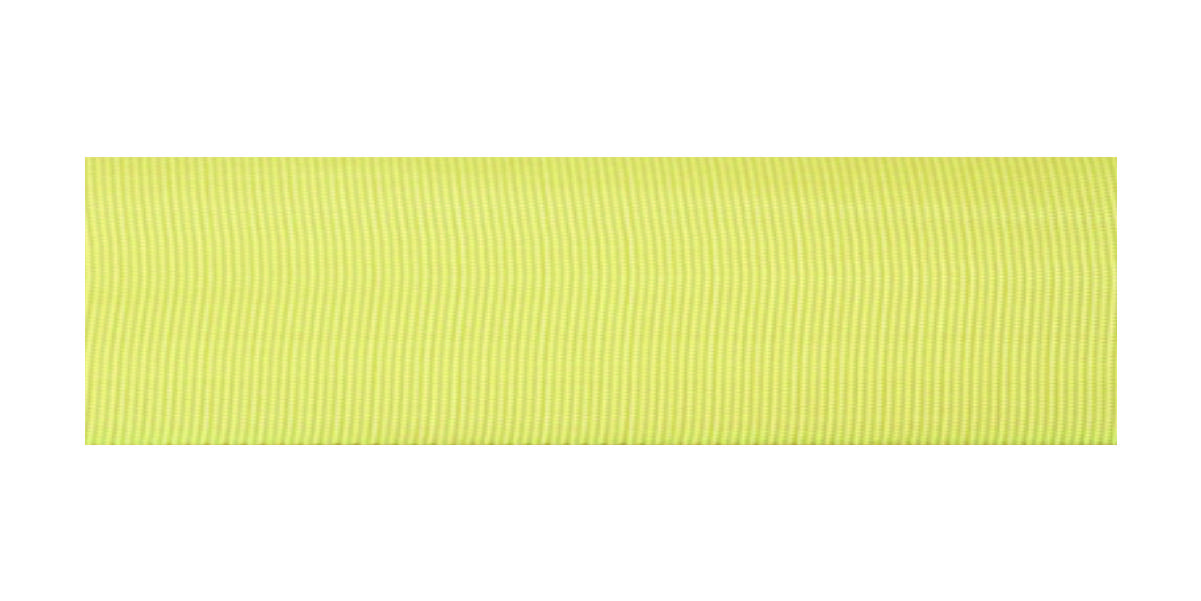

| NWFS-PIA-9078 | XI | 13 | 2 ± 1/16 | N/A | 2000 | N/A | 30 | Plain |

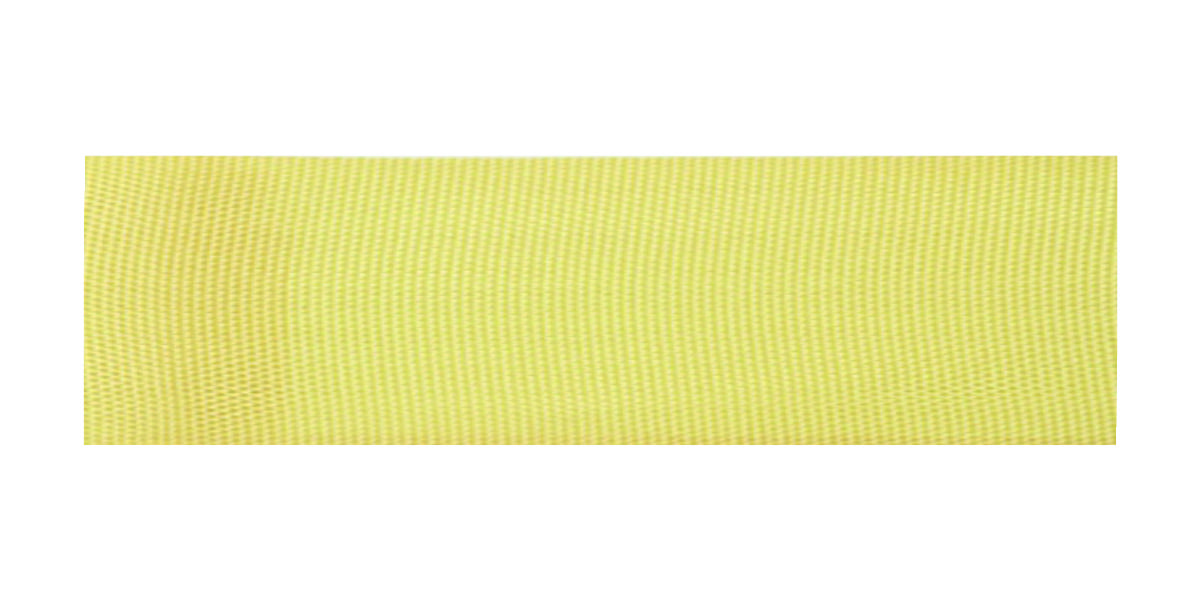

| NWFS-PIA-9079 | XI | 14 | 2 ± 1/16 | N/A | 2500 | N/A | 26 | Plain |

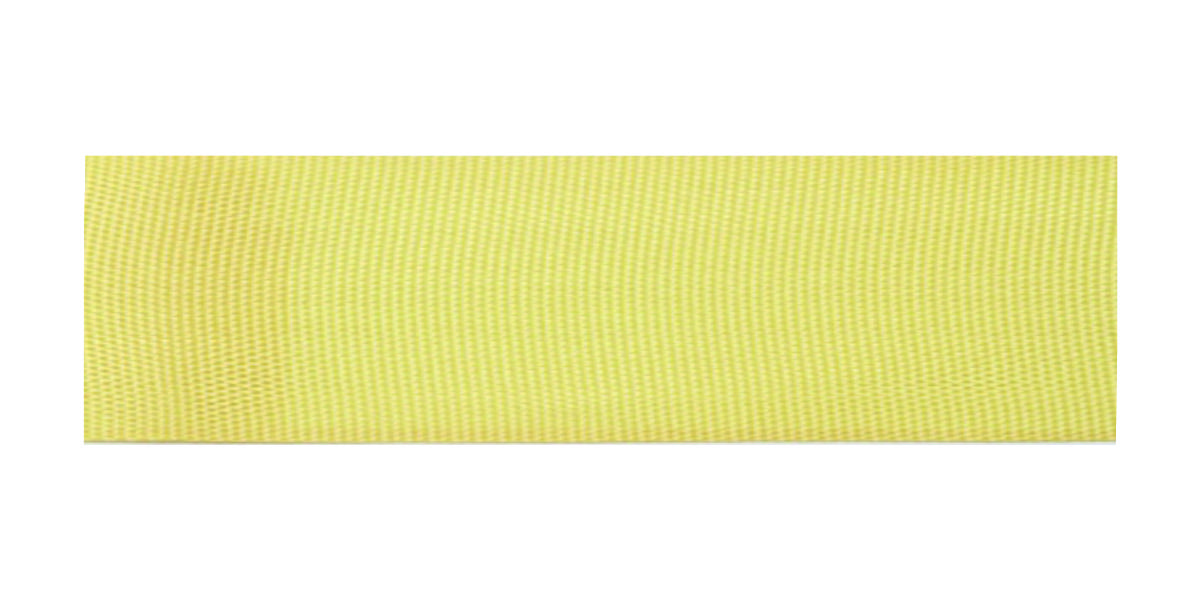

| NWFS-PIA-9080 | XI | 15 | 2 ± 1/16 | N/A | 3000 | N/A | 24 | Plain |

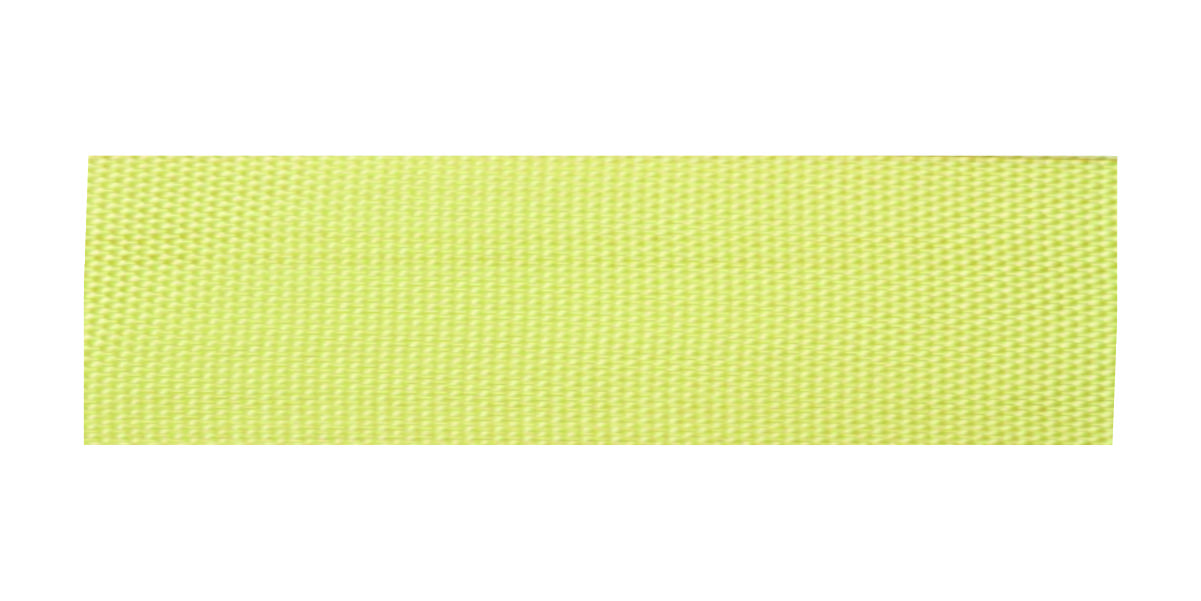

| NWFS-PIA-9081 | XI | 16 | 2 ± 1/16 | N/A | 4000 | N/A | 20 | Plain |

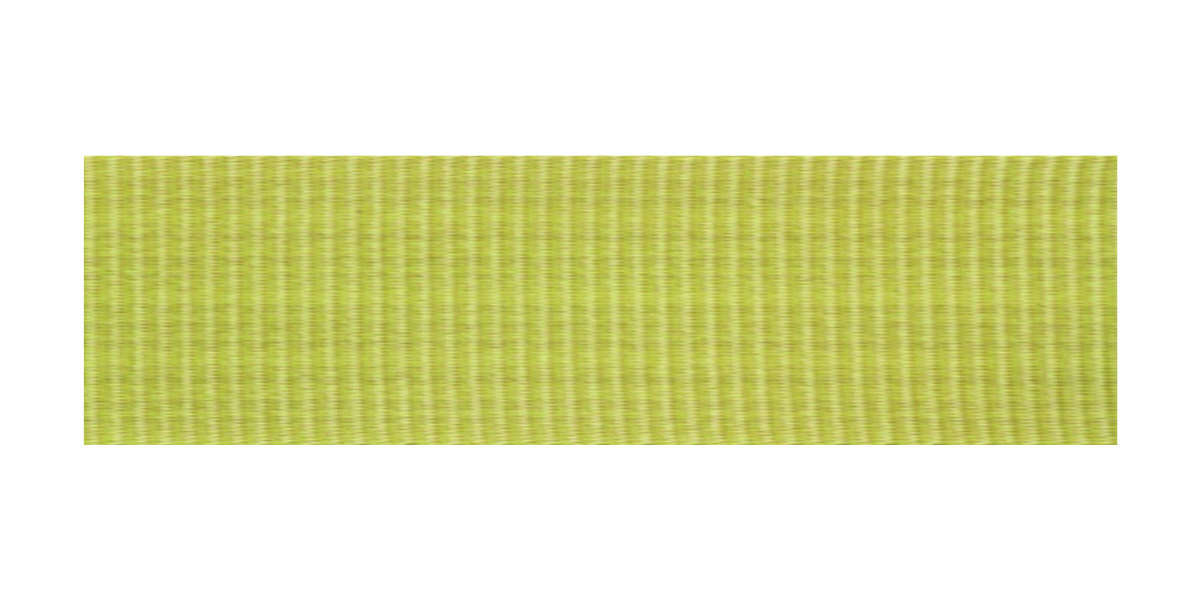

| NWFS-PIA-9082 | XI | 17 | 2 ± 1/16 | N/A | 5000 | N/A | 13 | Plain |

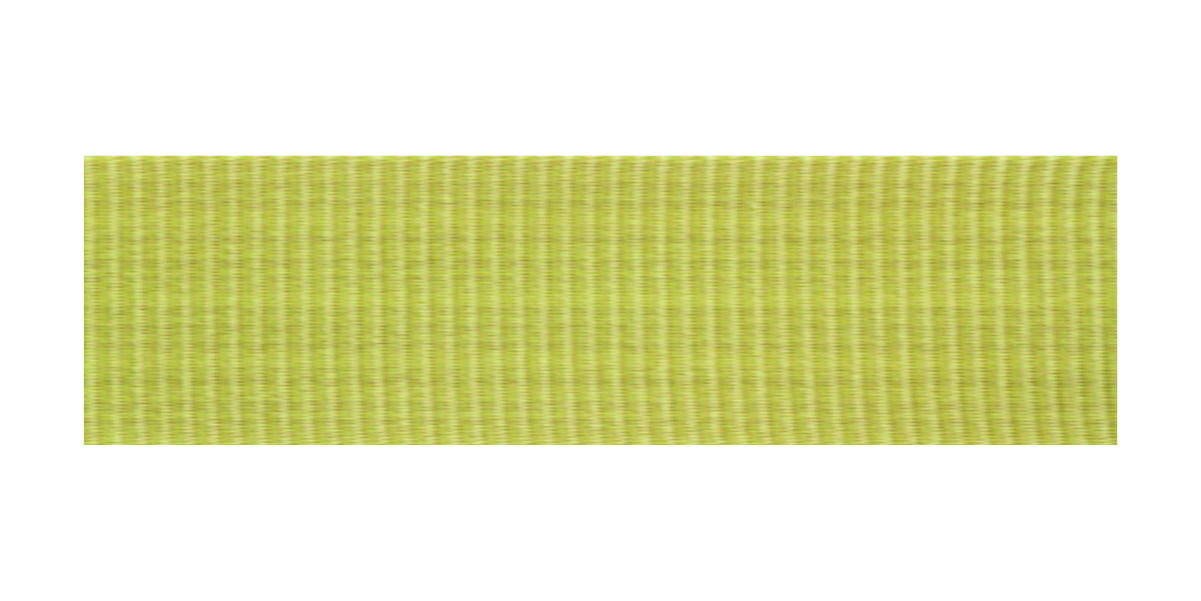

| NWFS-PIA-9083 | XI | 18 | 2 ± 1/16 | N/A | 6000 | N/A | 13 | Plain |
| NWFS-PIA-9084 | XI | 19 | 2 ± 1/16 | N/A | 8000 | N/A | 12 | Plain |

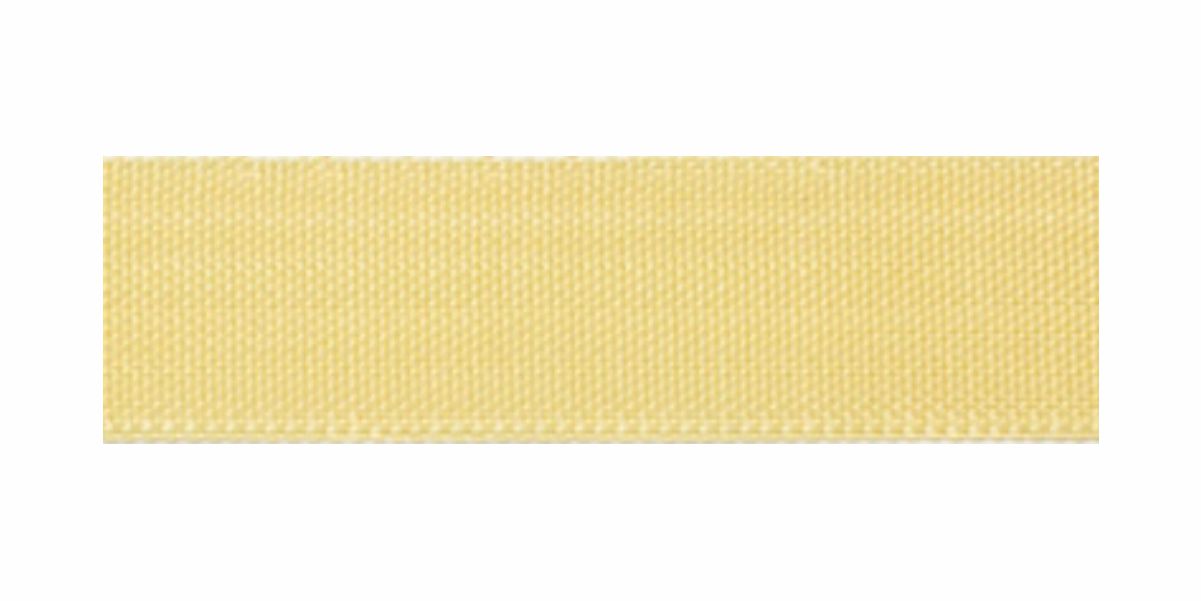

NWFS-PIA-9031
Tape, Para-Aramid, 1/2 inch wide
PIA-T-87130 Type I
Plain weave
Thickness: N/A
Tensile strength: min. 250 lbs
Shade: Yellow
$ 0.474 per yard
Get this deal

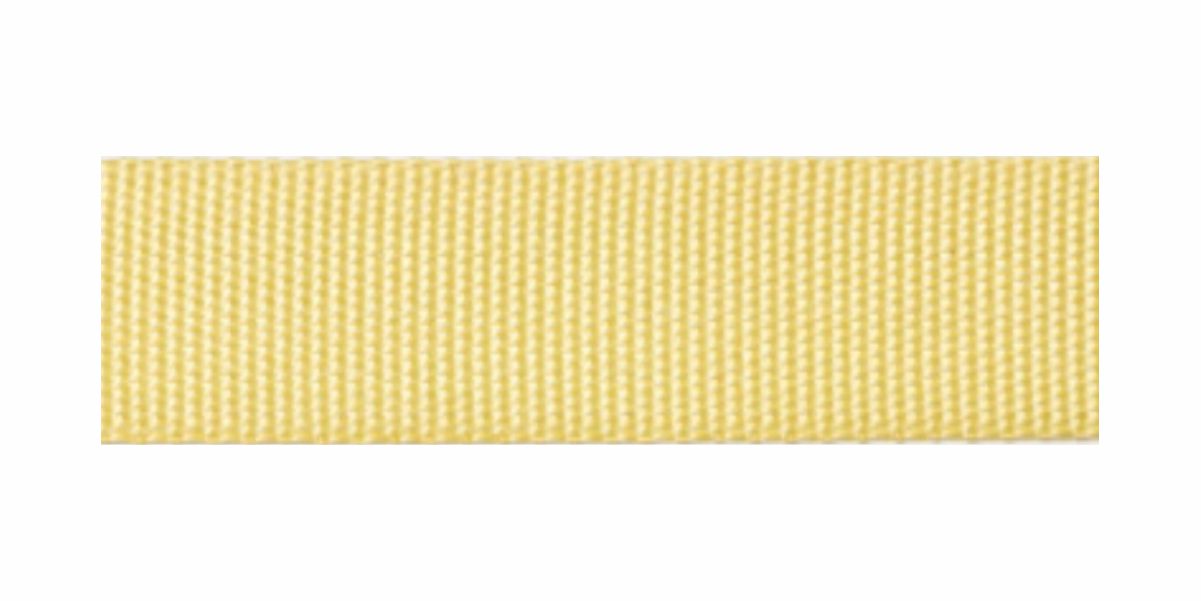

NWFS-PIA-9032
Tape, Para-Aramid, 1/2 inch wide
PIA-T-87130 Type I
Plain weave
Thickness: N/A
Tensile strength: min. 550 lbs
Shade: Yellow
$ 0.624 per yard
Get this deal

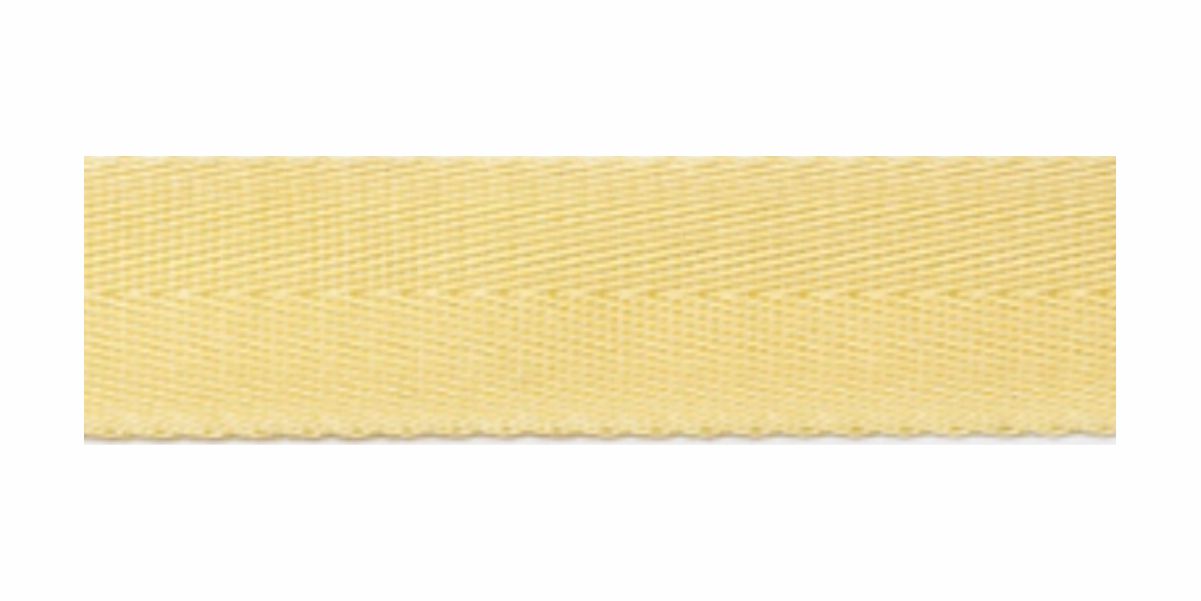

NWFS-PIA-9033
Tape, Para-Aramid, 1/2 inch wide
IA-T-87130 Type I
1/3 Twill Central Reversal weave
Thickness: N/A
Tensile strength: min. 800 lbs
Shade: Yellow
Request a quote
Get this deal

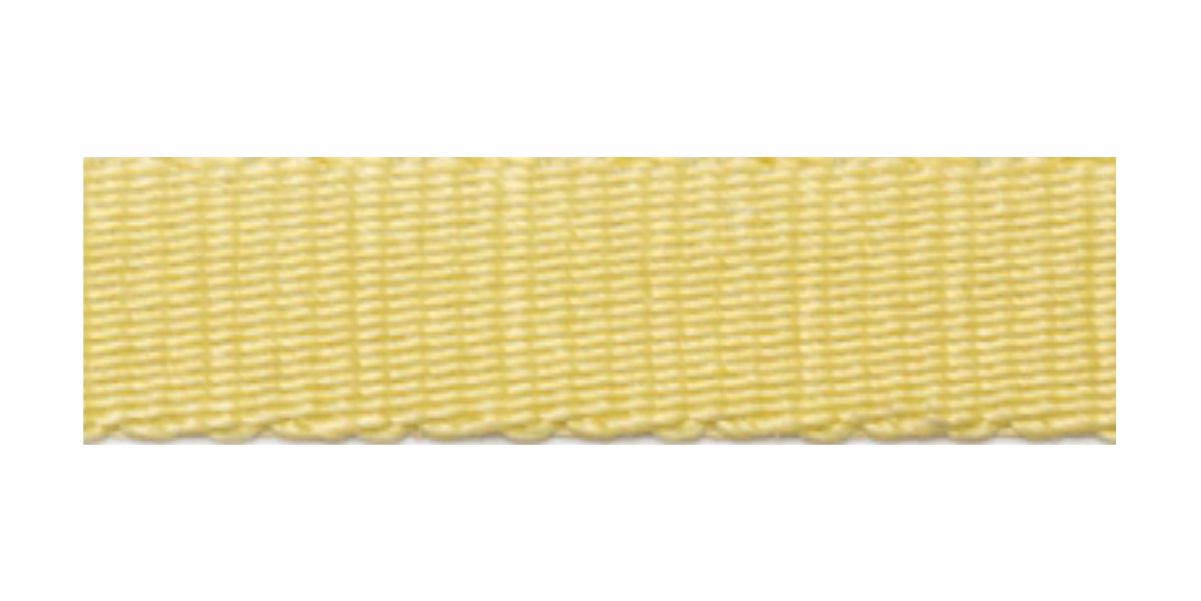

NWFS-PIA-9034
Tape, Para-Aramid, 1/2 inch wide
PIA-T-87130 Type I
Double Plain weave
Thickness: N/A
Tensile strength: min. 3500 lbs
Shade: Yellow
Request a quote
Contact Us

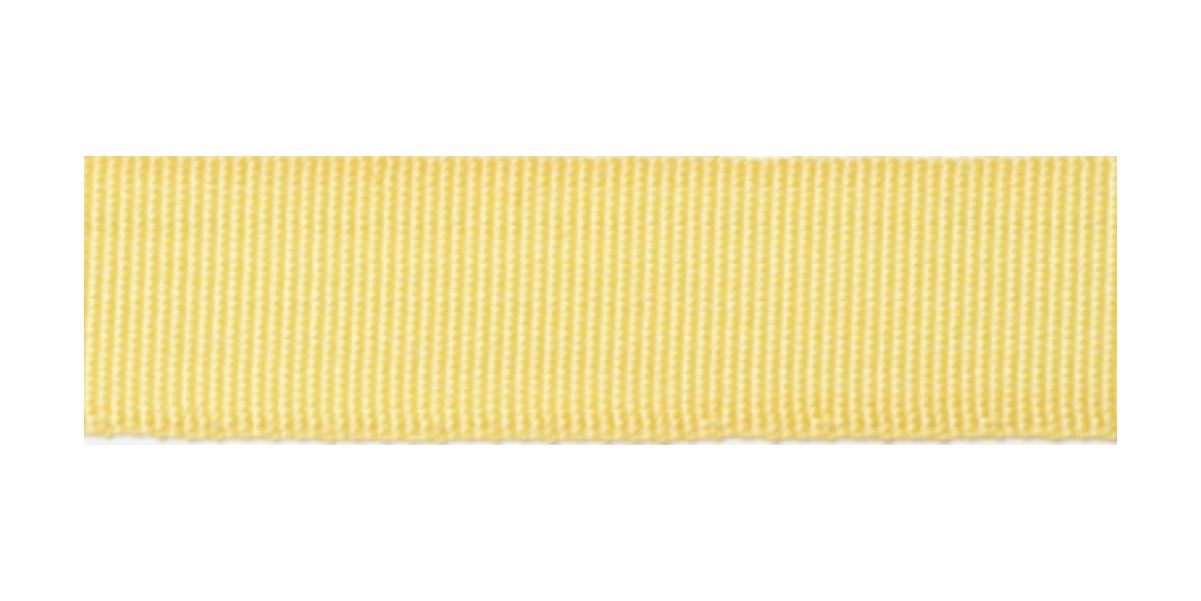

NWFS-PIA-9035
Tape, Para-Aramid, 9/16 inch wide
PIA-T-87130 Type II
Plain weave
Thickness: N/A
Tensile strength: min. 500 lbs
Shade: Yellow
Request a quote
Contact Us

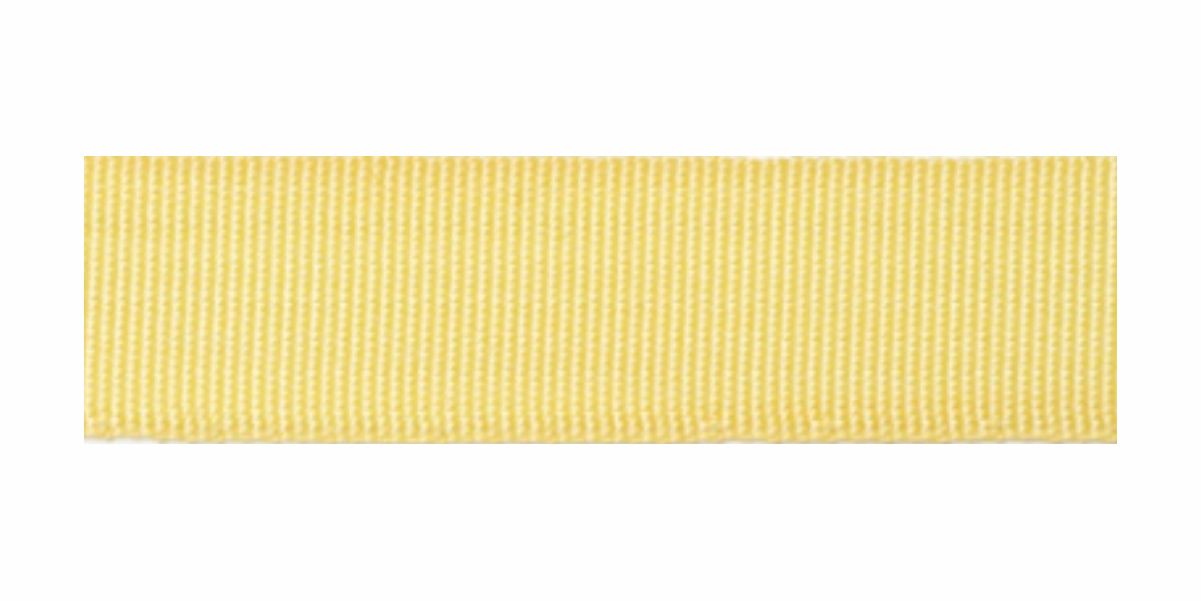

NWFS-PIA-9036
Tape, Para-Aramid, 9/16 inch wide
PIA-T-87130 Type II
Plain weave
Thickness: N/A
Tensile strength: min. 700 lbs
Shade: Yellow
Request a quote
Contact Us

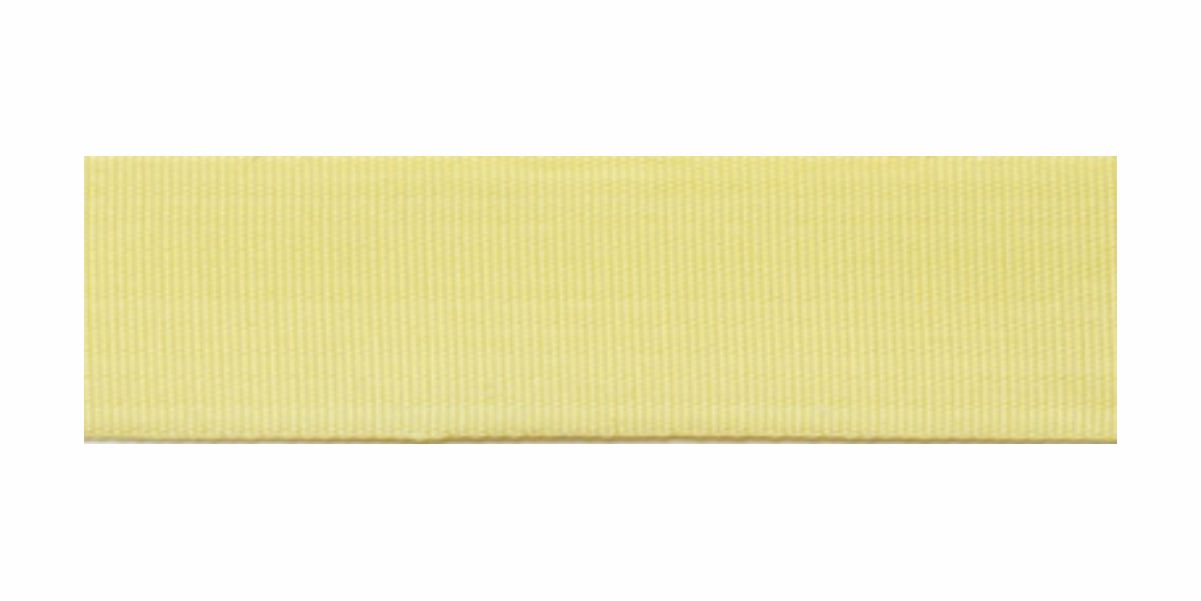

NWFS-PIA-9037
Tape, Para-Aramid, 3/4 inch wide
PIA-T-87130 Type IV
Plain weave
Thickness: N/A
Tensile strength: min. 500 lbs
Shade: Yellow
Request a quote
Contact Us

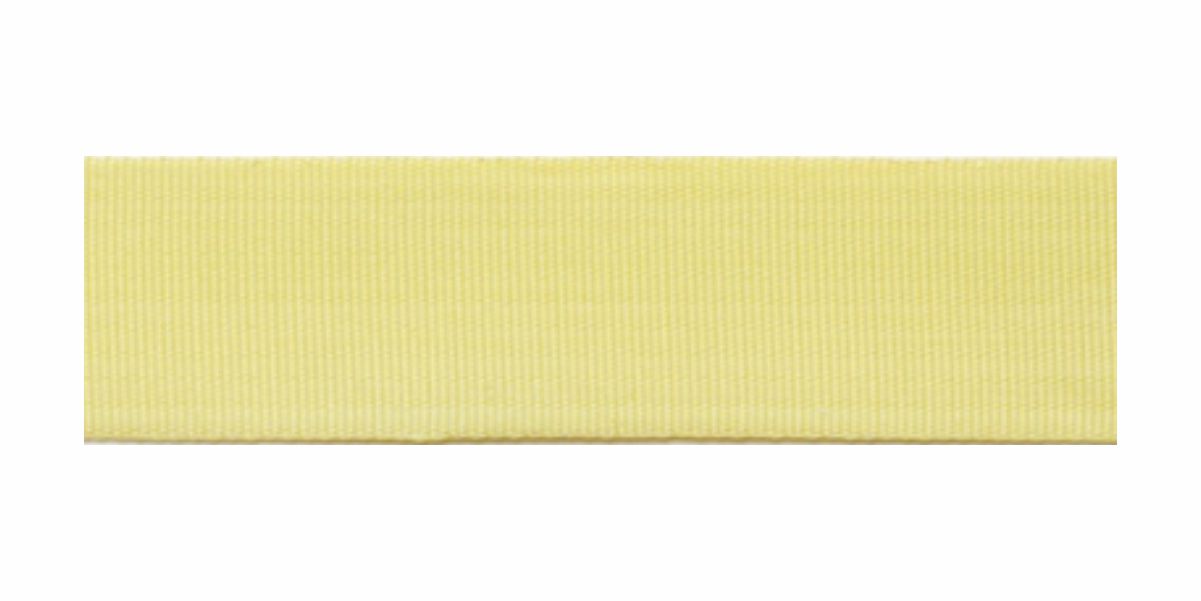

NWFS-PIA-9038
Tape, Para-Aramid, 3/4 inch wide
PIA-T-87130 Type IV
Plain weave
Thickness: N/A
Tensile strength: min. 3000 lbs
Shade: Yellow
Request a quote
Contact Us

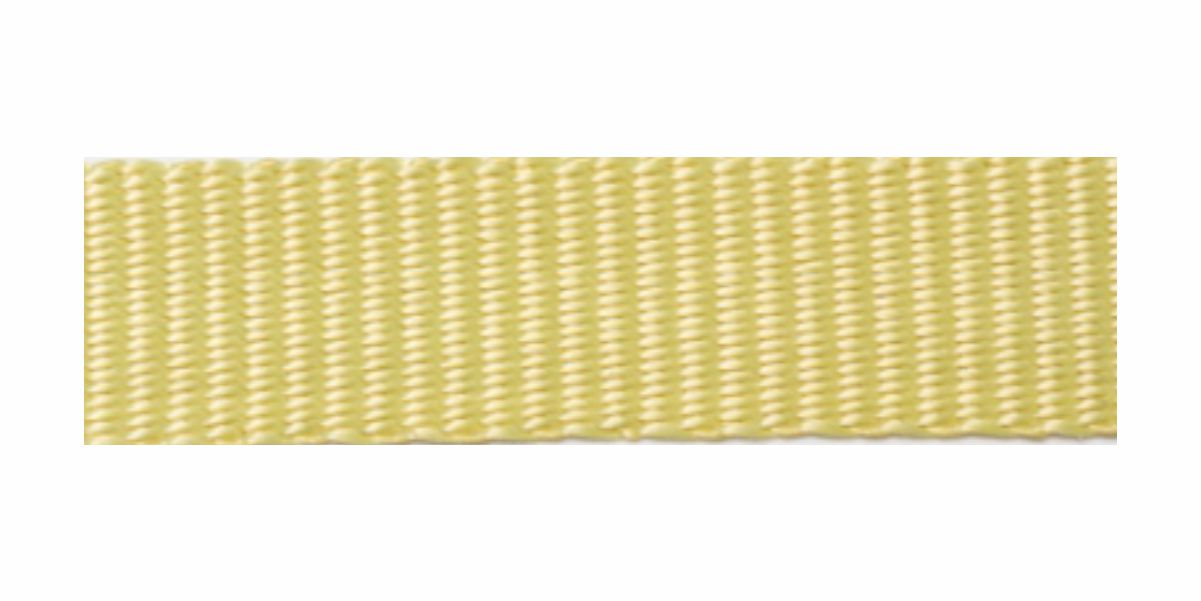

NWFS-PIA-9039
Tape, Para-Aramid, 3/4 inch wide
PIA-T-87130 Type IV
Plain weave
Thickness: N/A
Tensile strength: min. 4500 lbs
Shade: Yellow
Request a quote
Contact Us

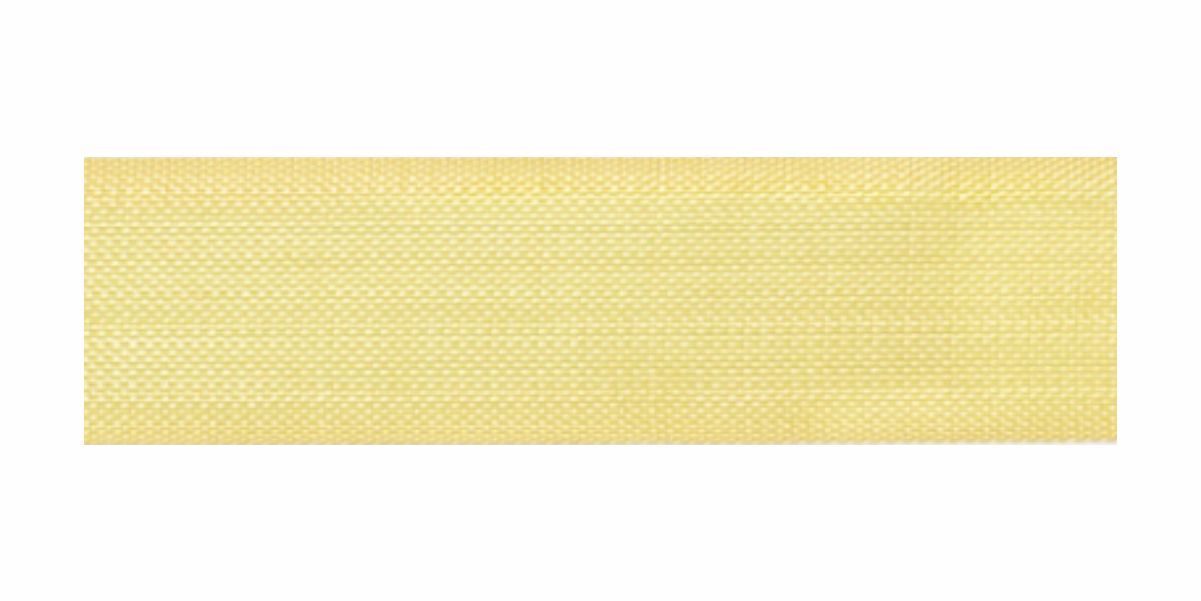

NWFS-PIA-9040
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 371 lbs
Shade: Yellow
Request a quote
Contact Us

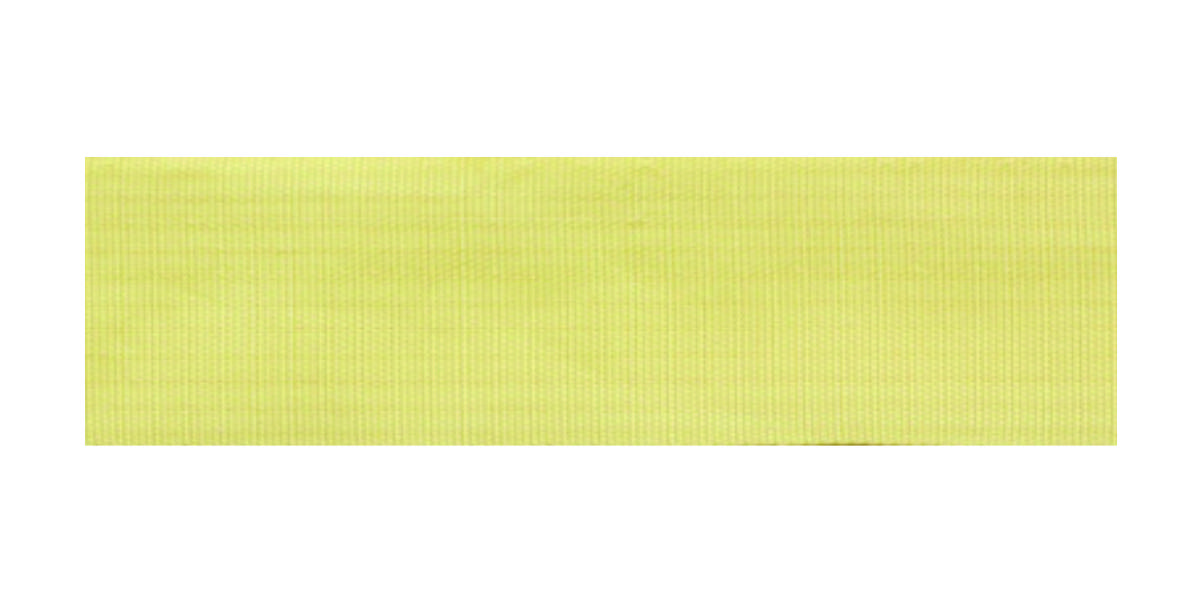

NWFS-PIA-9041
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 525 lbs
Shade: Yellow
Request a quote
Contact Us

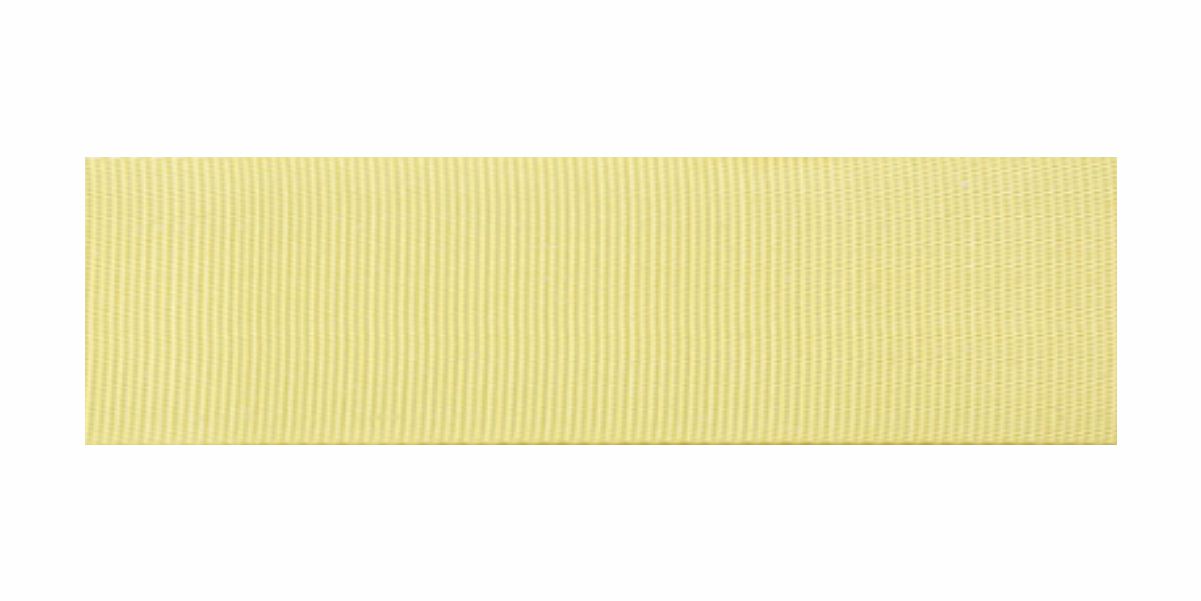

NWFS-PIA-9042
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 750 lbs
Shade: Yellow
Request a quote
Contact Us

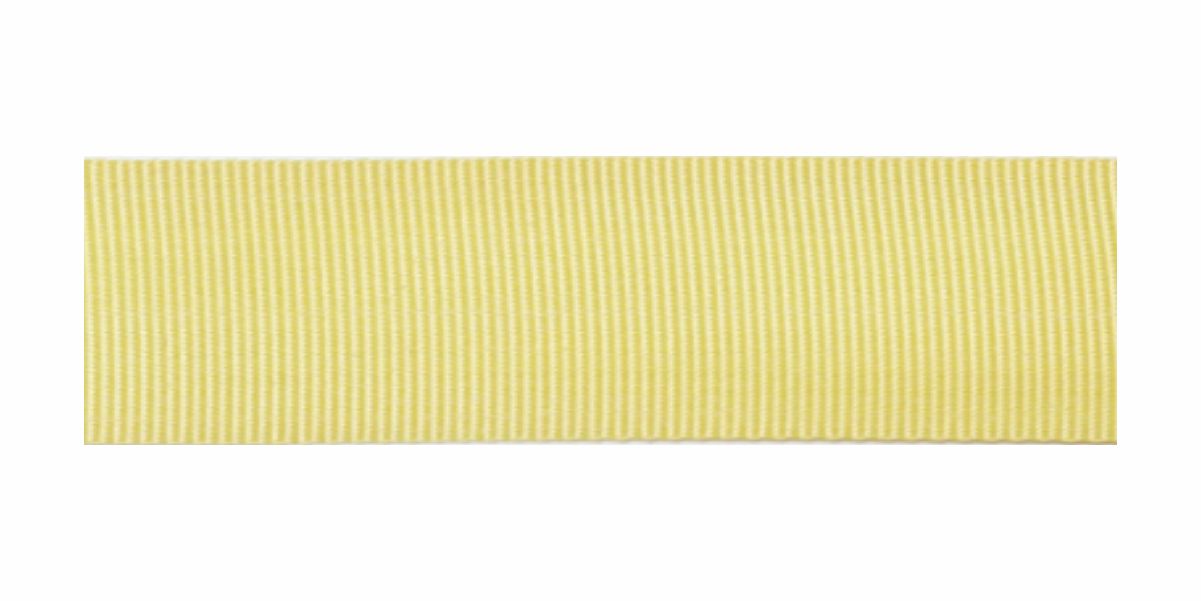

NWFS-PIA-9043
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 1000 lbs
Shade: Yellow
Request a quote
Contact Us

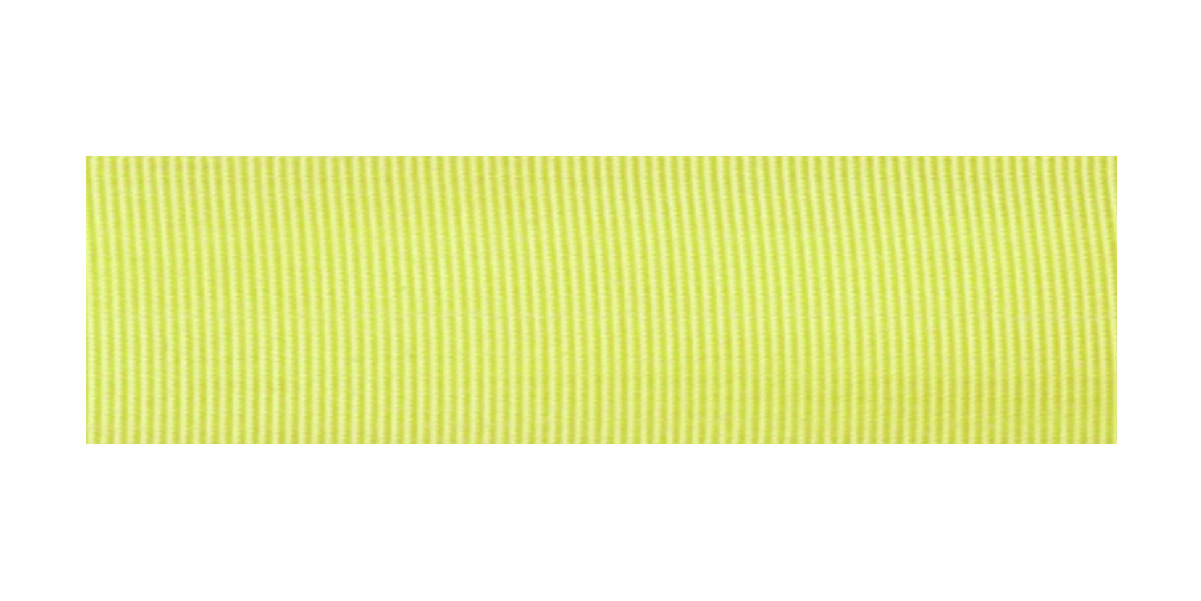

NWFS-PIA-9044
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 1500 lbs
Shade: Yellow
Request a quote
Contact Us

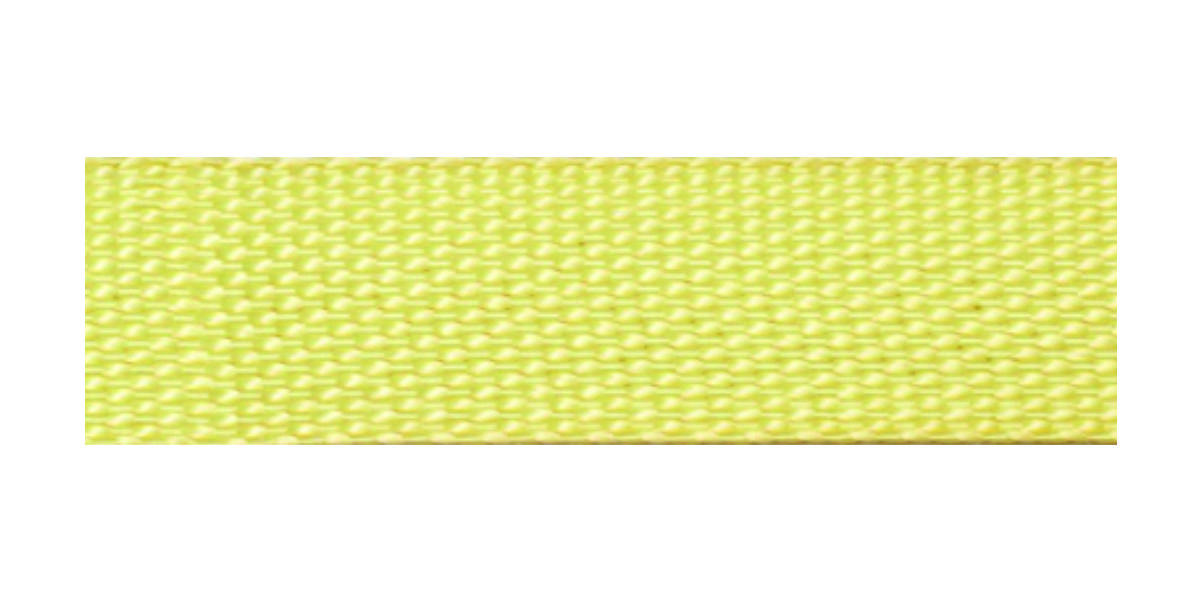

NWFS-PIA-9045
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 2500 lbs
Shade: Yellow
Request a quote
Contact Us

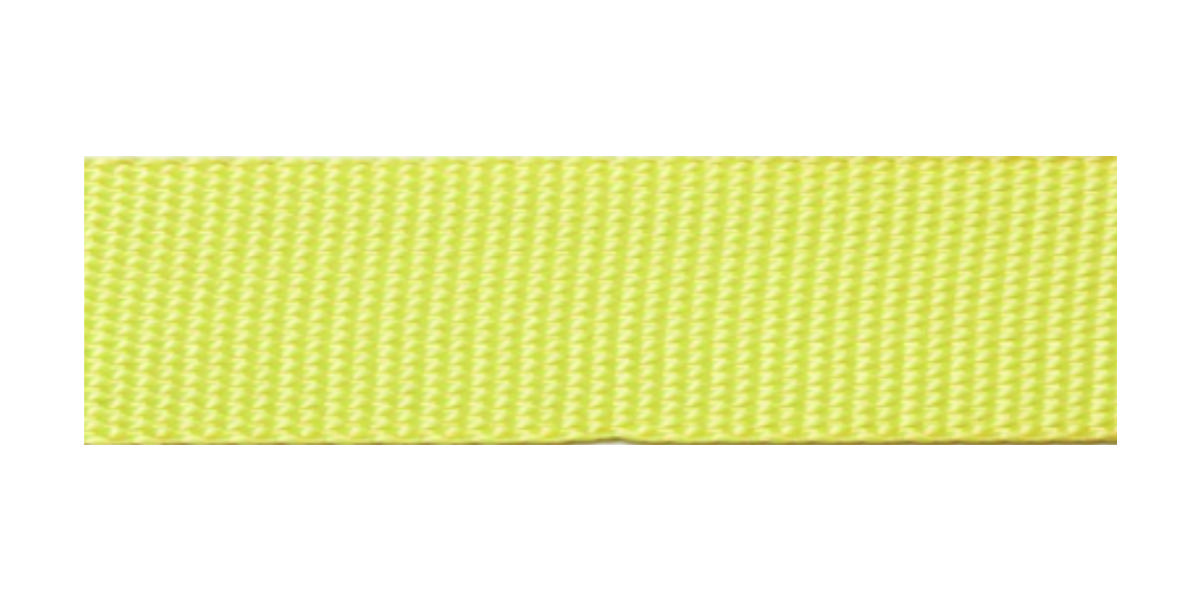

NWFS-PIA-9046
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 2400 lbs
Shade: Yellow
Request a quote
Contact Us

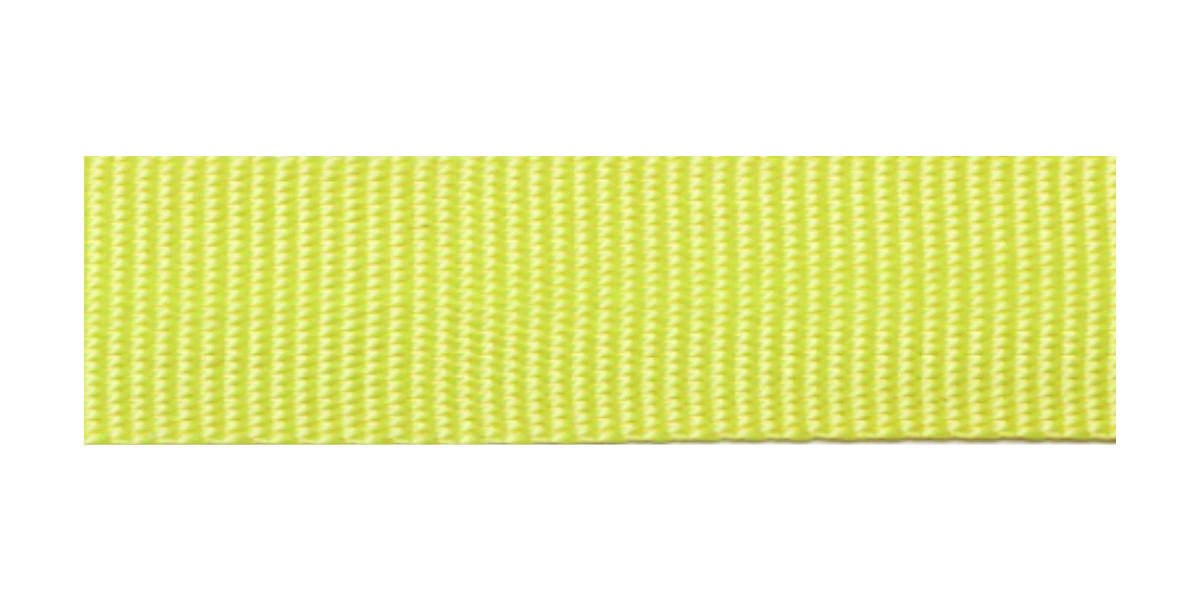

NWFS-PIA-9047
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 3000 lbs
Shade: Yellow
Request a quote
Contact Us

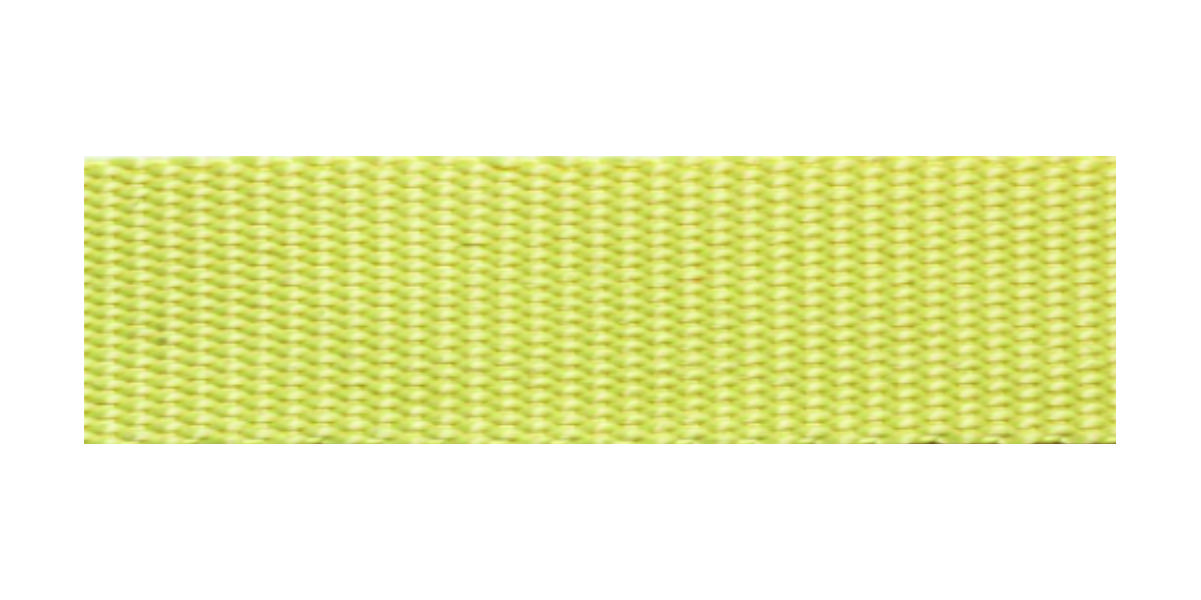

NWFS-PIA-9048
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 4000 lbs
Shade: Yellow
Request a quote
Contact Us

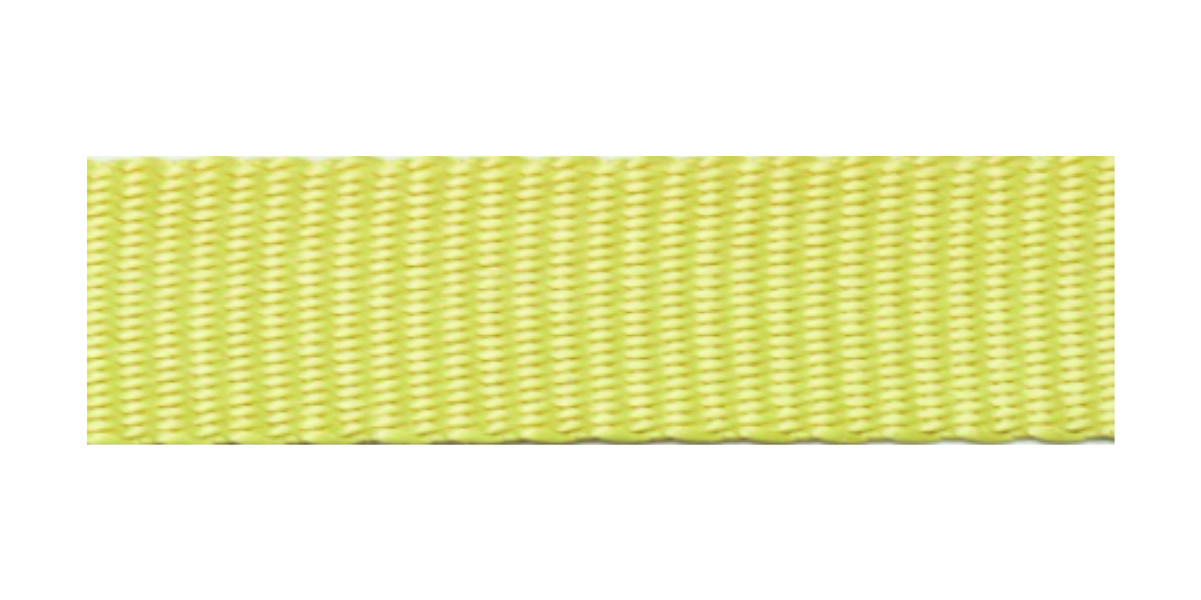

NWFS-PIA-9049
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Herringbone Twill Weave
Thickness: N/A
Tensile strength: min. 6000 lbs
Shade: Yellow
Request a quote
Contact Us

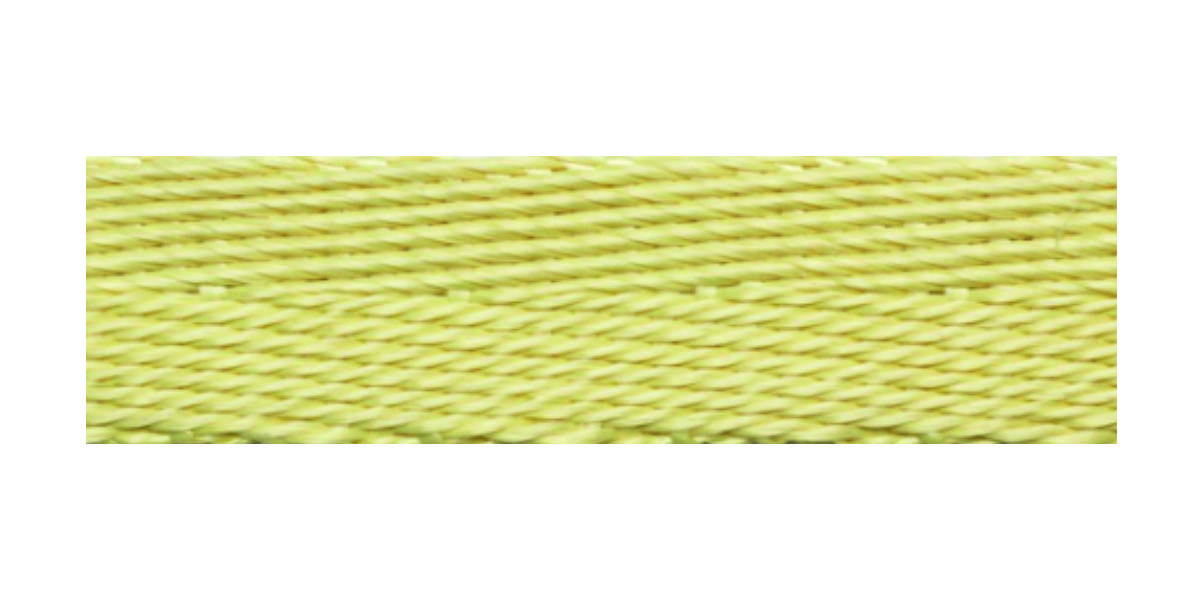

NWFS-PIA-9050
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
51/15 Center Reversal weave
Thickness: N/A
Tensile strength: min. 7000 lbs
Shade: Yellow
Request a quote
Contact Us

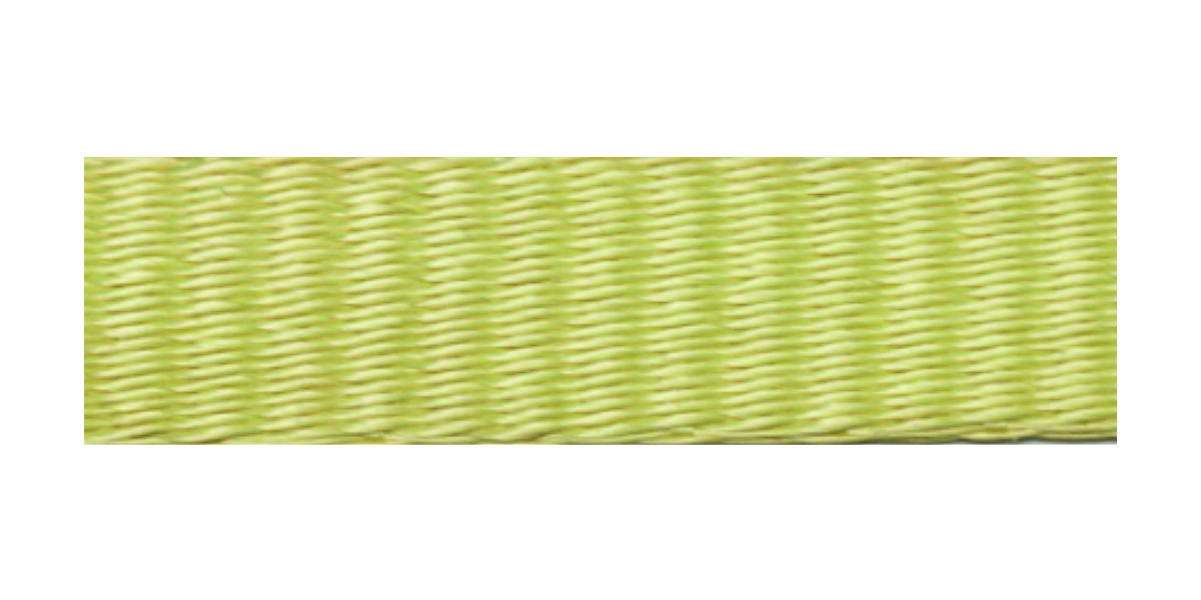

NWFS-PIA-9051
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 6000 lbs
Shade: Yellow
Request a quote
Contact Us

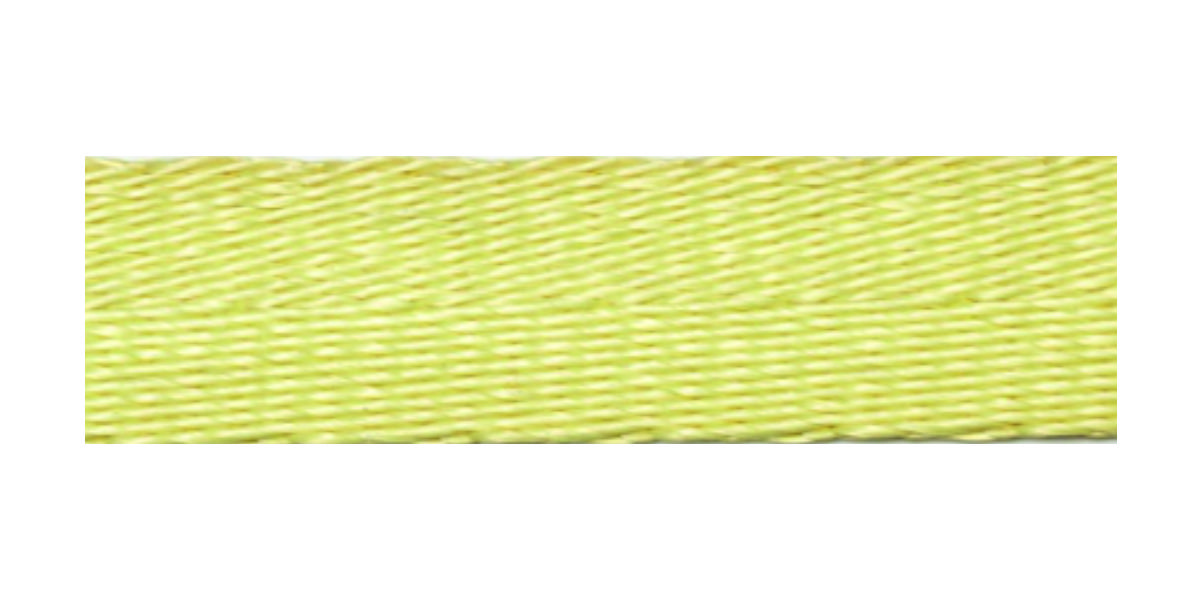

NWFS-PIA-9052
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Herringbone Twill Weave
Thickness: N/A
Tensile strength: min. 9500 lbs
Shade: Yellow
Request a quote
Contact Us

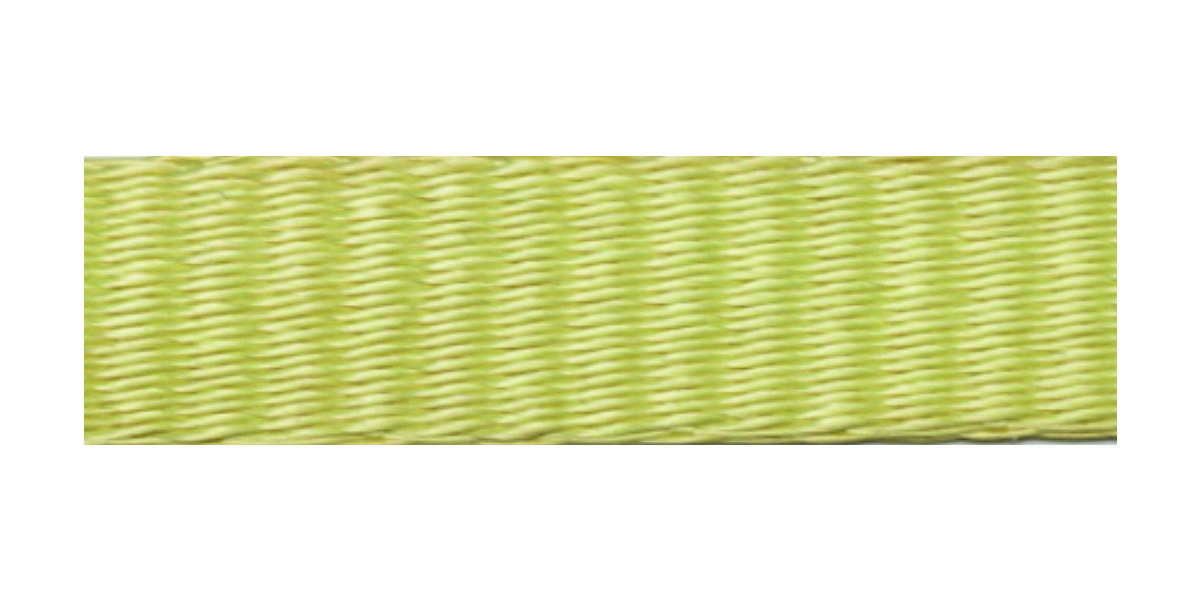

NWFS-PIA-9053
Tape, Para-Aramid, 1 inch wide
PIA-T-87130 Type VI
Plain weave
Thickness: N/A
Tensile strength: min. 12500 lbs
Shade: Yellow
Request a quote
Contact Us

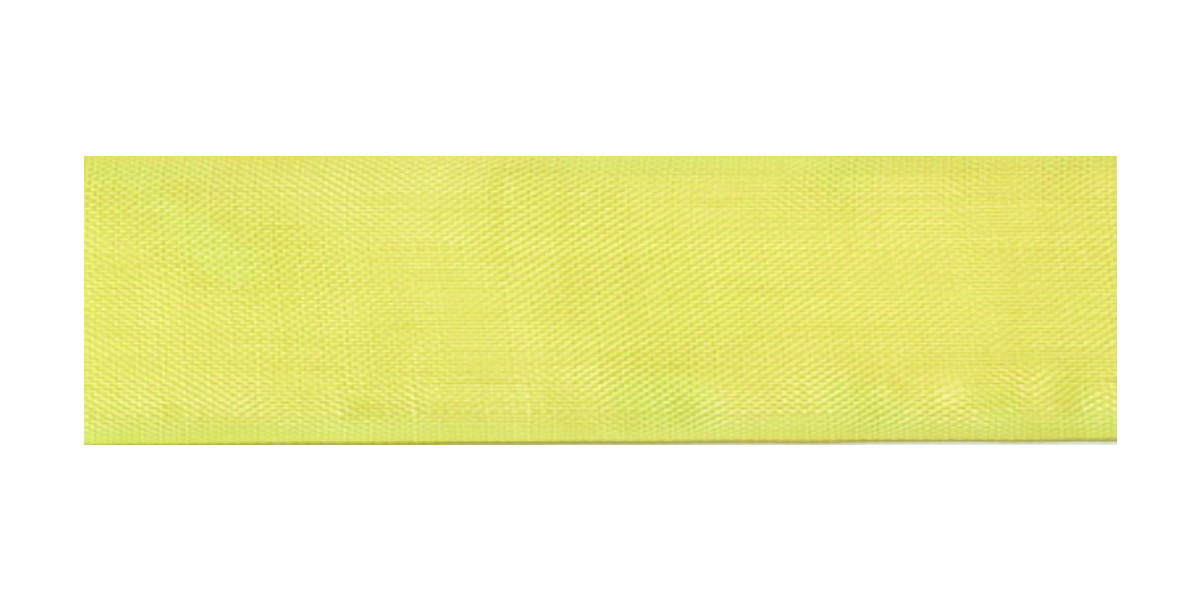

NWFS-PIA-9054
Tape, Para-Aramid, 1-1/8 inch wide
PIA-T-87130 Type VII
Plain weave
Thickness: N/A
Tensile strength: min. 1100 lbs
Shade: Yellow
Request a quote
Contact Us

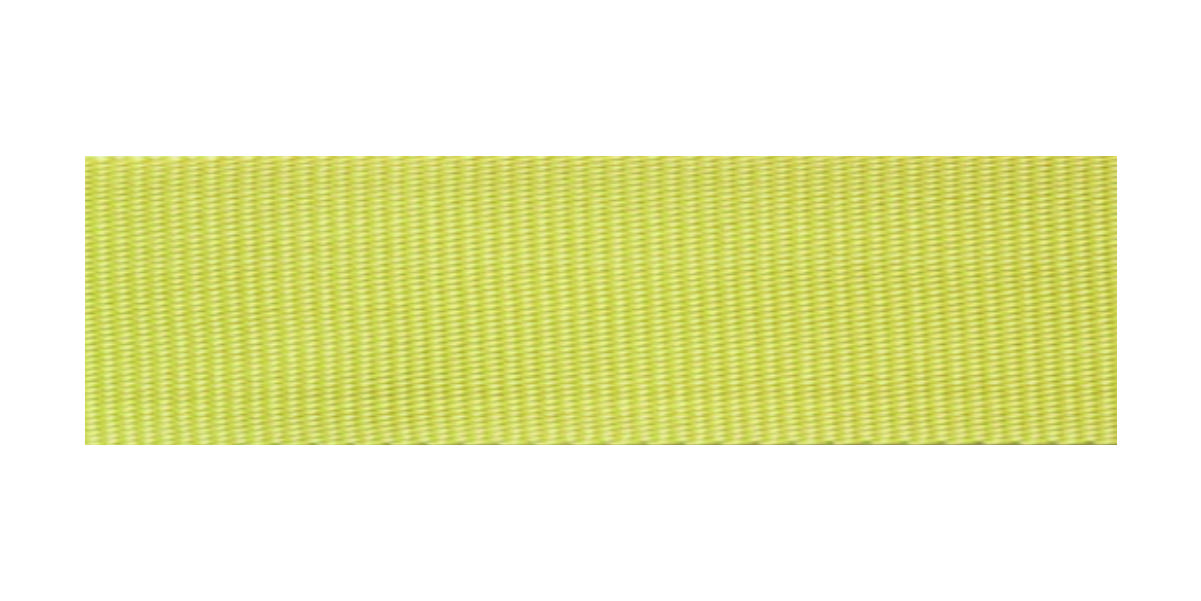

NWFS-PIA-9055
Tape, Para-Aramid, 1-1/8 inch wide
PIA-T-87130 Type VII
Plain weave
Thickness: N/A
Tensile strength: min. 2750 lbs
Shade: Yellow
Request a quote
Contact Us

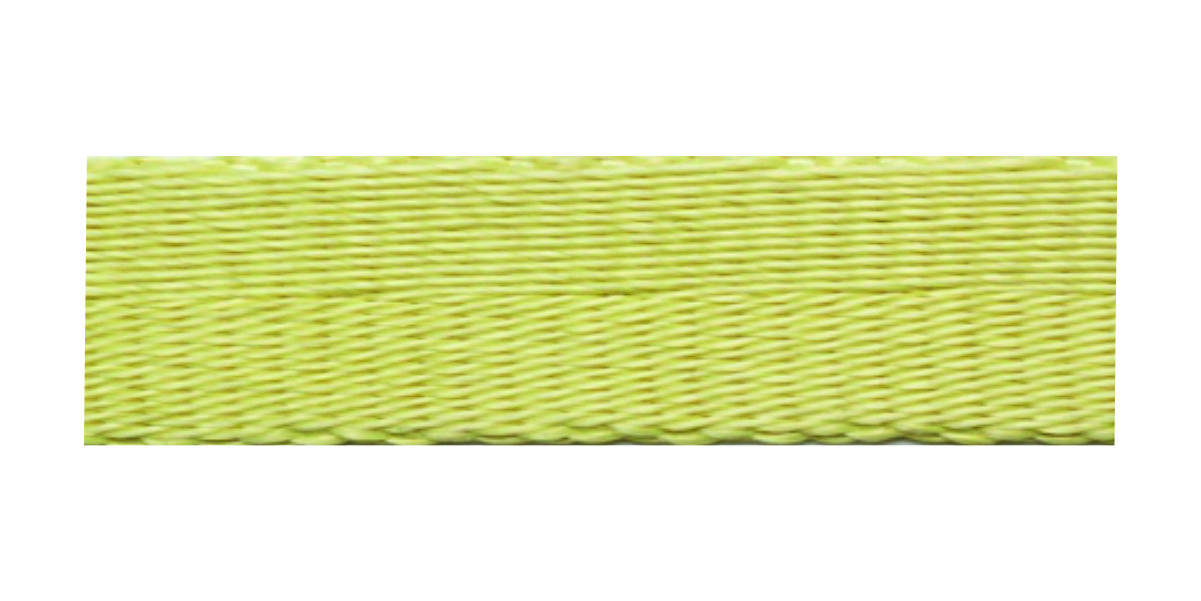

NWFS-PIA-9056
Tape, Para-Aramid, 1-1/8 inch wide
PIA-T-87130 Type VII
Herringbone 5/1 Twill Weave
Thickness: N/A
Tensile strength: min. 13500 lbs
Shade: Yellow
Request a quote
Contact Us

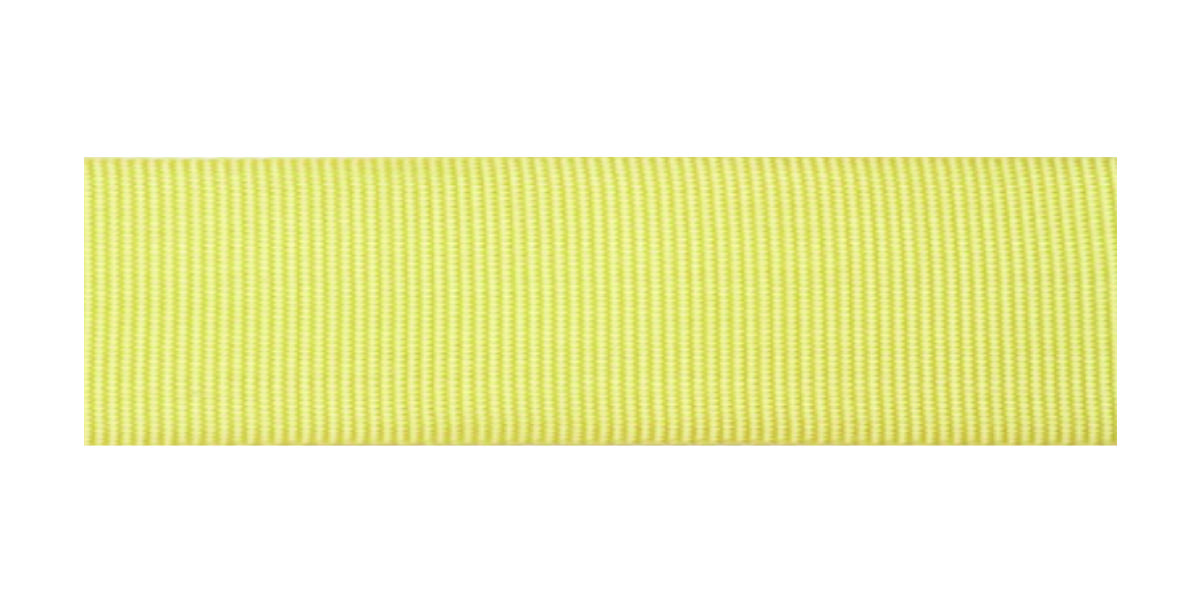

NWFS-PIA-9057
Tape, Para-Aramid, 1-1/8 inch wide
PIA-T-87130 Type VIII
Plain weave
Thickness: N/A
Tensile strength: min. 800 lbs
Shade: Yellow
Request a quote
Contact Us

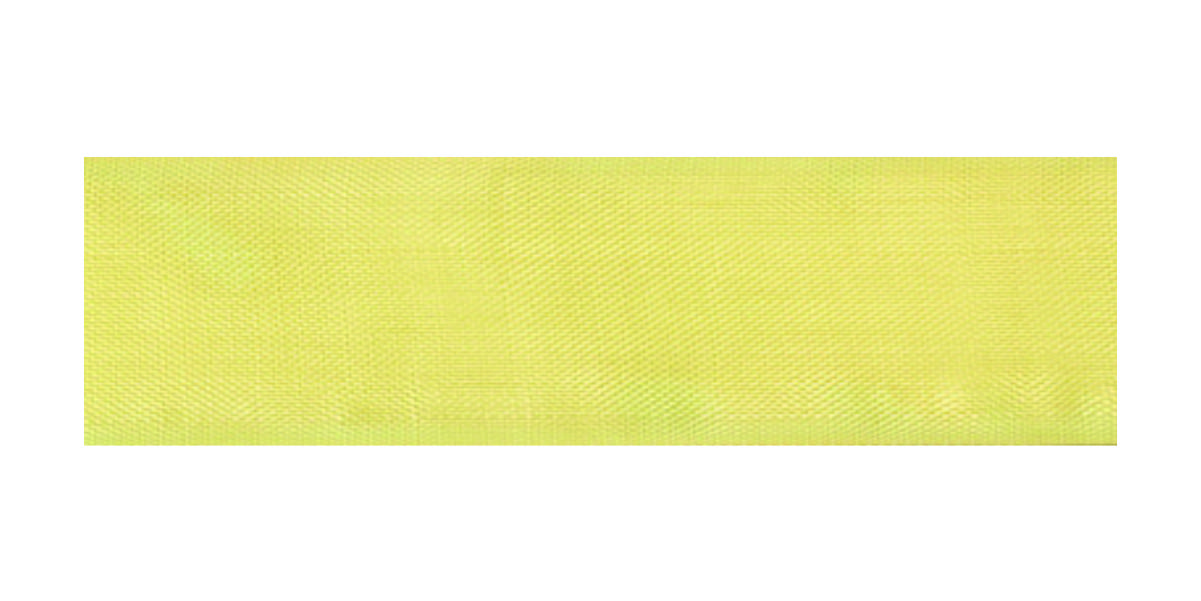

NWFS-PIA-9058
Tape, Para-Aramid, 1-1/2 inch wide
PIA-T-87130 Type IX
Plain weave
Thickness: N/A
Tensile strength: min. 500 lbs
Shade: Yellow
Request a quote
Contact Us

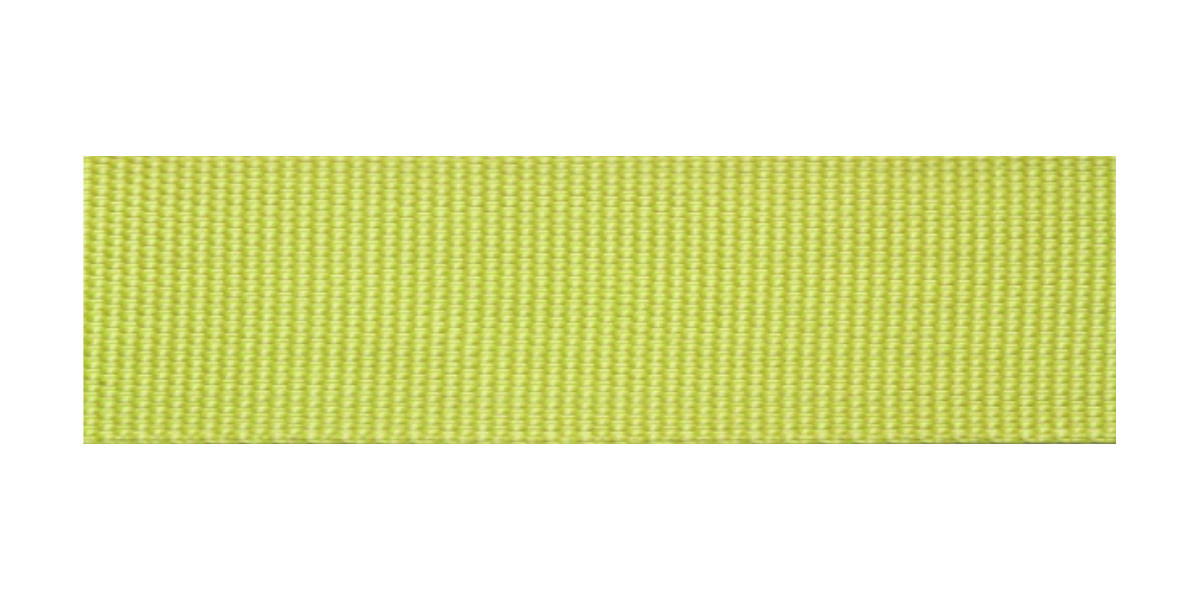

NWFS-PIA-9059
Tape, Para-Aramid, 1-1/2 inch wide
PIA-T-87130 Type IX
Plain weave
Thickness: N/A
Tensile strength: min. 1100 lbs
Shade: Yellow
Request a quote
Contact Us

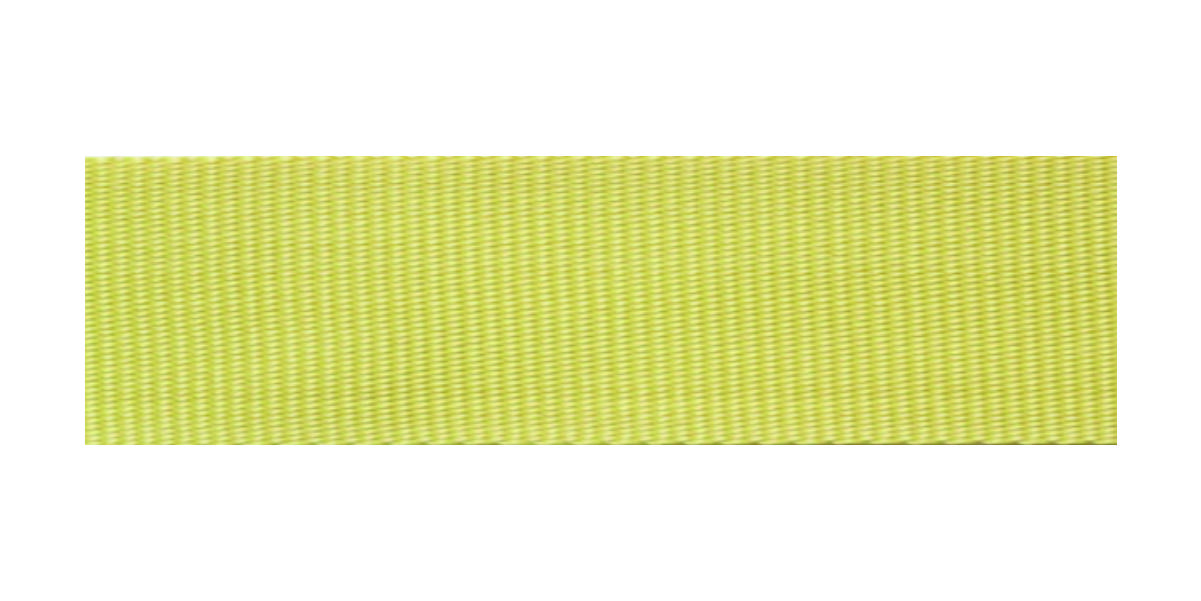

NWF-1129
Tape, Para-Aramid, 1-1/2 inch wide
PIA-T-87130 Type IX
Plain weave
Thickness: N/A
Tensile strength: min. 3000 lbs
Shade: Yellow
Request a quote
Contact Us

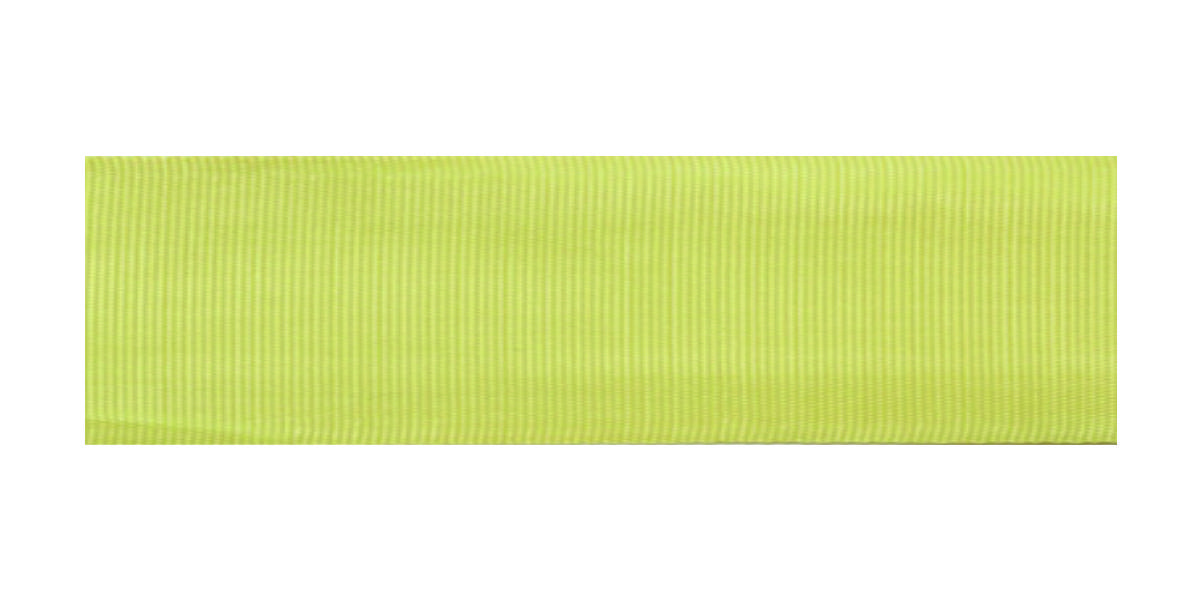

NWFS-PIA-9061
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 1000 lbs
Shade: Yellow
Request a quote
Contact Us

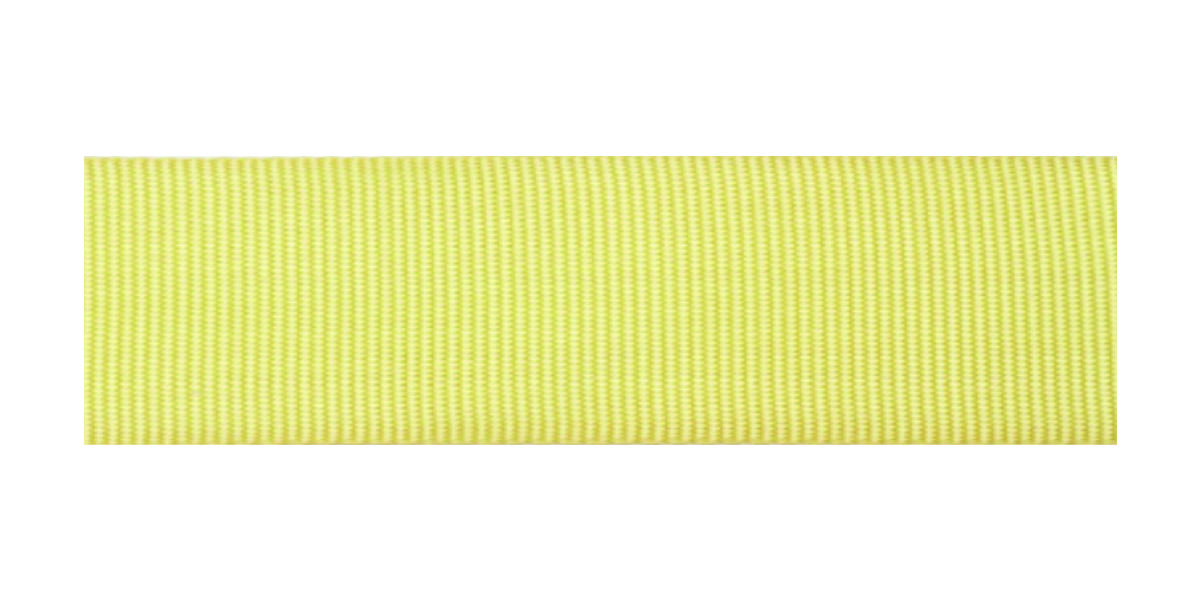

NWFS-PIA-9062
Tape, Para-Aramid, 1-3/4 inch wide
PIA-W-4088 Type VIIIb
Plain weave
Thickness: N/A
Tensile strength: min. 1200 lbs
Shade: Yellow
Request a quote
Contact Us

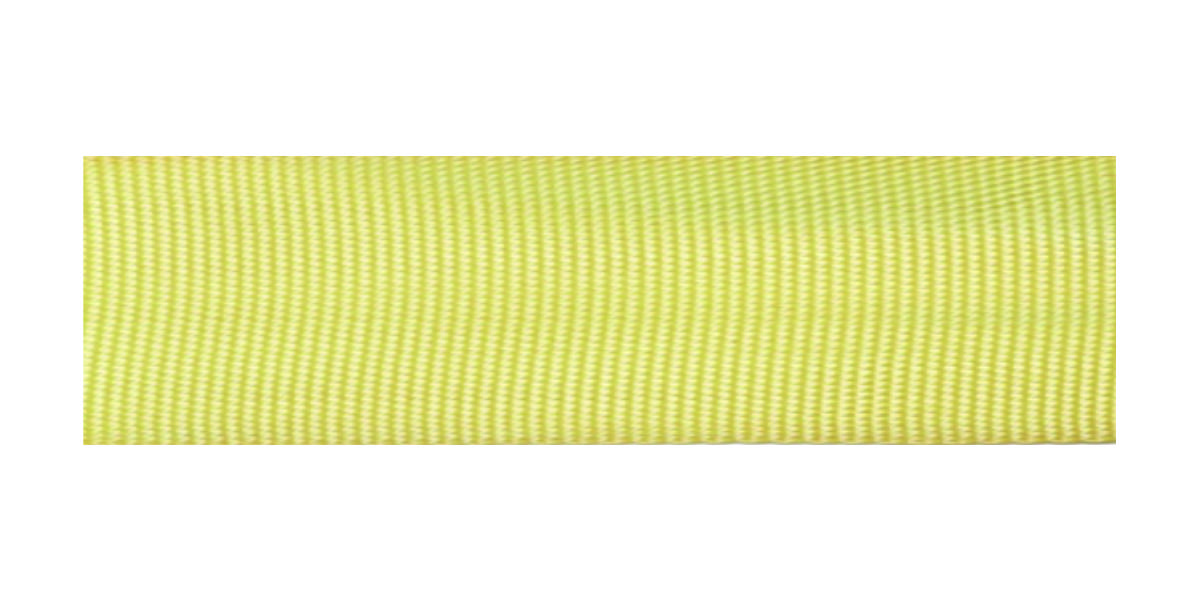

NWFS-PIA-9063
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 2500 lbs
Shade: Yellow
Request a quote
Contact Us

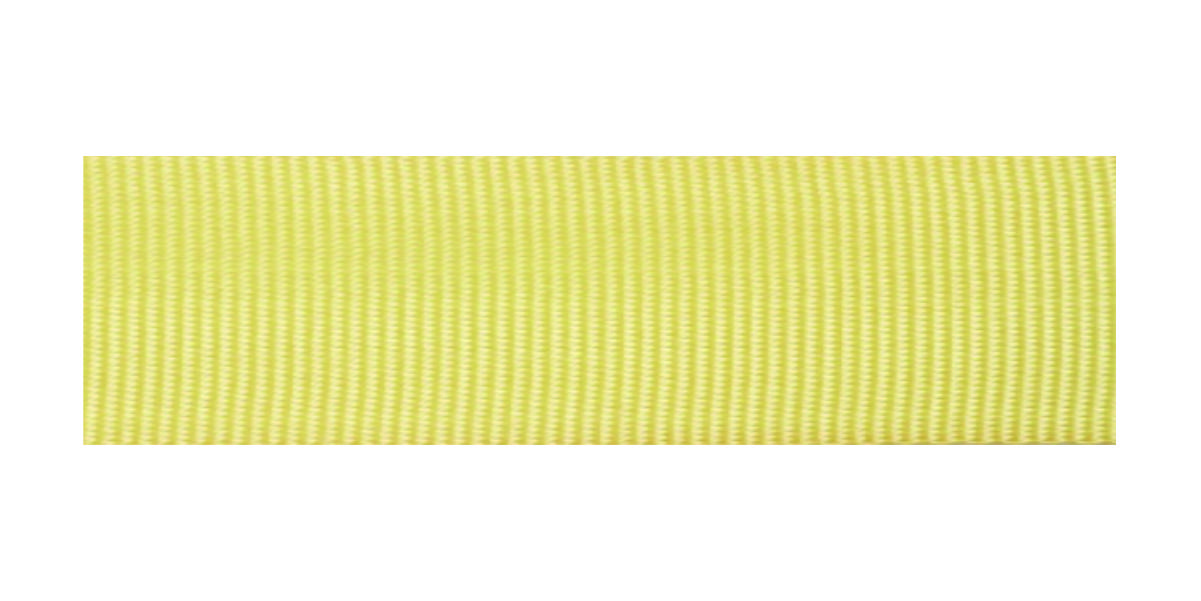

NWFS-PIA-9064
Tape, nylon, 3 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 3000 lbs
Shade: Yellow
Request a quote
Contact Us

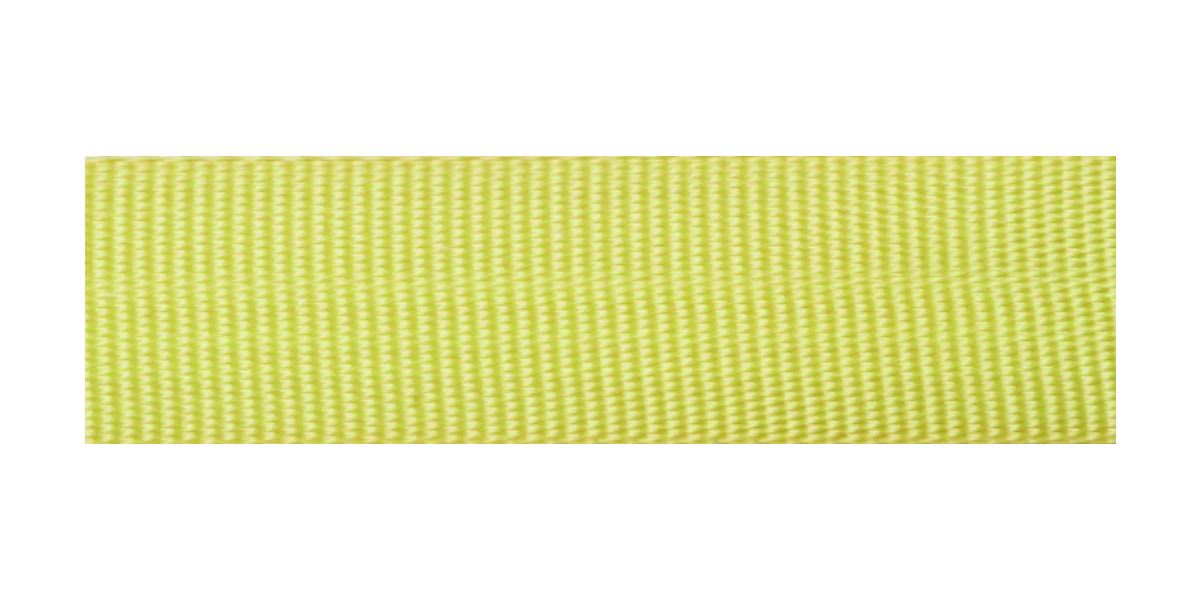

NWFS-PIA-9065
Tape, nylon, 1-23/32 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 4000 lbs
Shade: Yellow
Request a quote
Contact Us

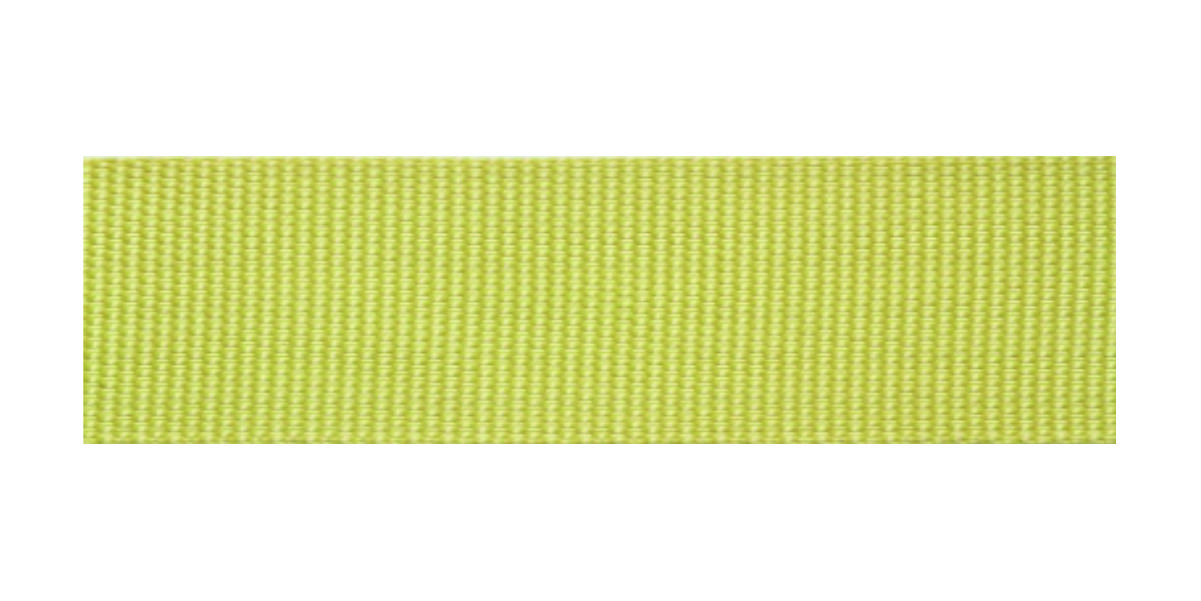

NWFS-PIA-9066
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 4500 lbs
Shade: Yellow
Request a quote
Contact Us

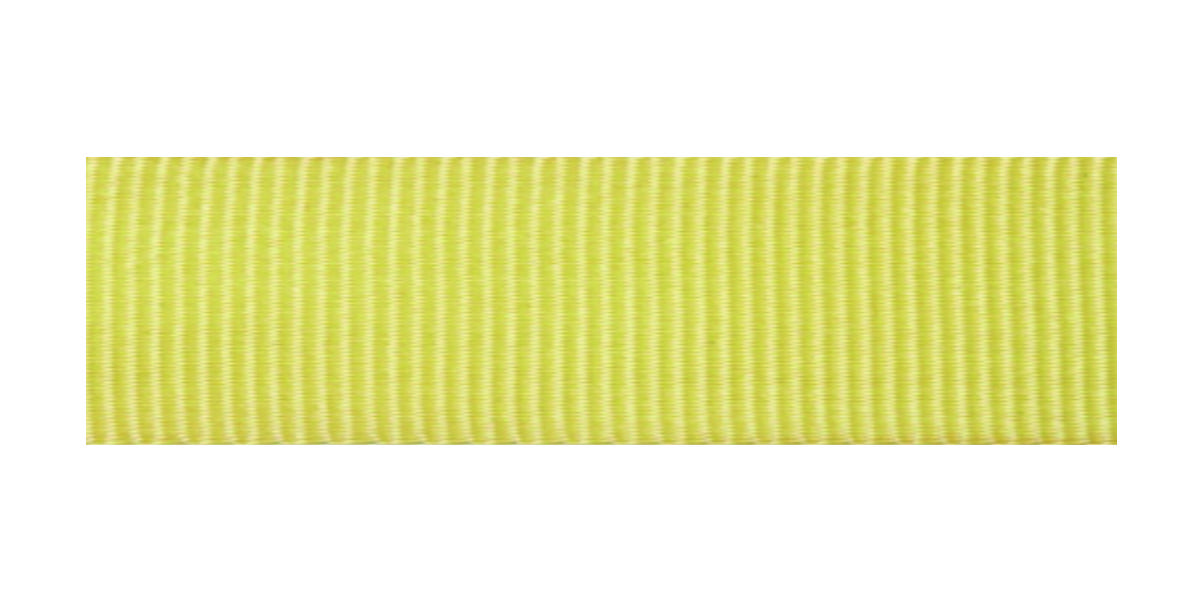

NWFS-PIA-9067
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 6500 lbs
Shade: Yellow
Request a quote
Contact Us

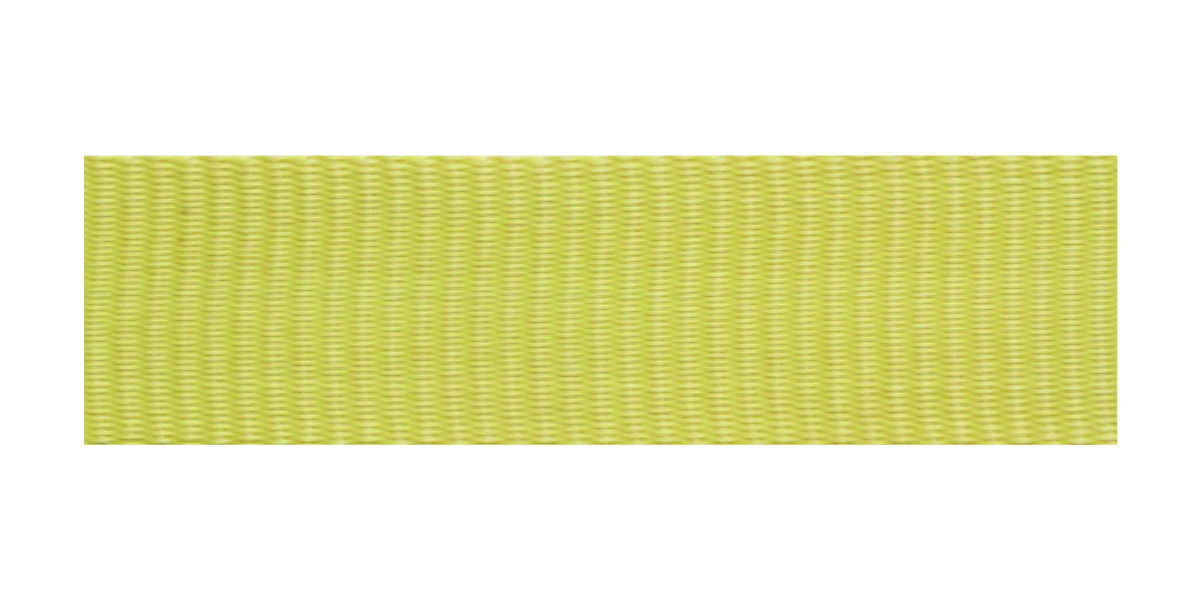

NWFS-PIA-9068
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Plain weave
Thickness: N/A
Tensile strength: min. 8000 lbs
Shade: Yellow
Request a quote
Contact Us

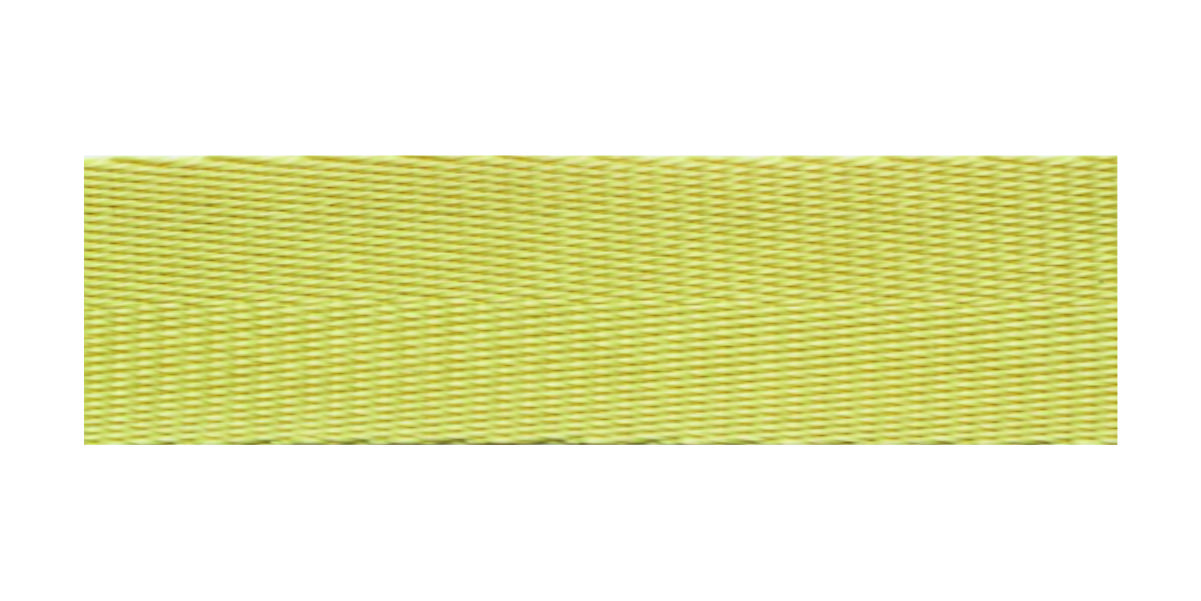

NWFS-PIA-9069
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Herringbone 2x2 Twill Weave
Thickness: N/A
Tensile strength: min. 10000 lbs
Shade: Blue
Request a quote
Contact Us
NWFS-PIA-9070
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Double Plain weave
Thickness: N/A
Tensile strength: min. 15000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9071
Tape, Para-Aramid, 1-3/4 inch wide
PIA-T-87130 Type X
Double Plain weave
Thickness: N/A
Tensile strength: min. 20000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9072
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain 1 weave
Thickness: N/A
Tensile strength: min. 400 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9073
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 600 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9074
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 800 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9075
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 1000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9076
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 1000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9077
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 1500 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9078
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 2000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9079
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 2500 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9080
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 3000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9081
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 4000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9082
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 5000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9083
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 6000 lbs
Shade: Yellow
Request a quote
Contact Us
NWFS-PIA-9083
Tape, Para-Aramid, 2 inch wide
PIA-T-87130 Type XI
Plain weave
Thickness: N/A
Tensile strength: min. 8000 lbs
Shade: Yellow
Request a quote
Contact Us
